Steps and platforms
Areas of Application

Steps and platforms

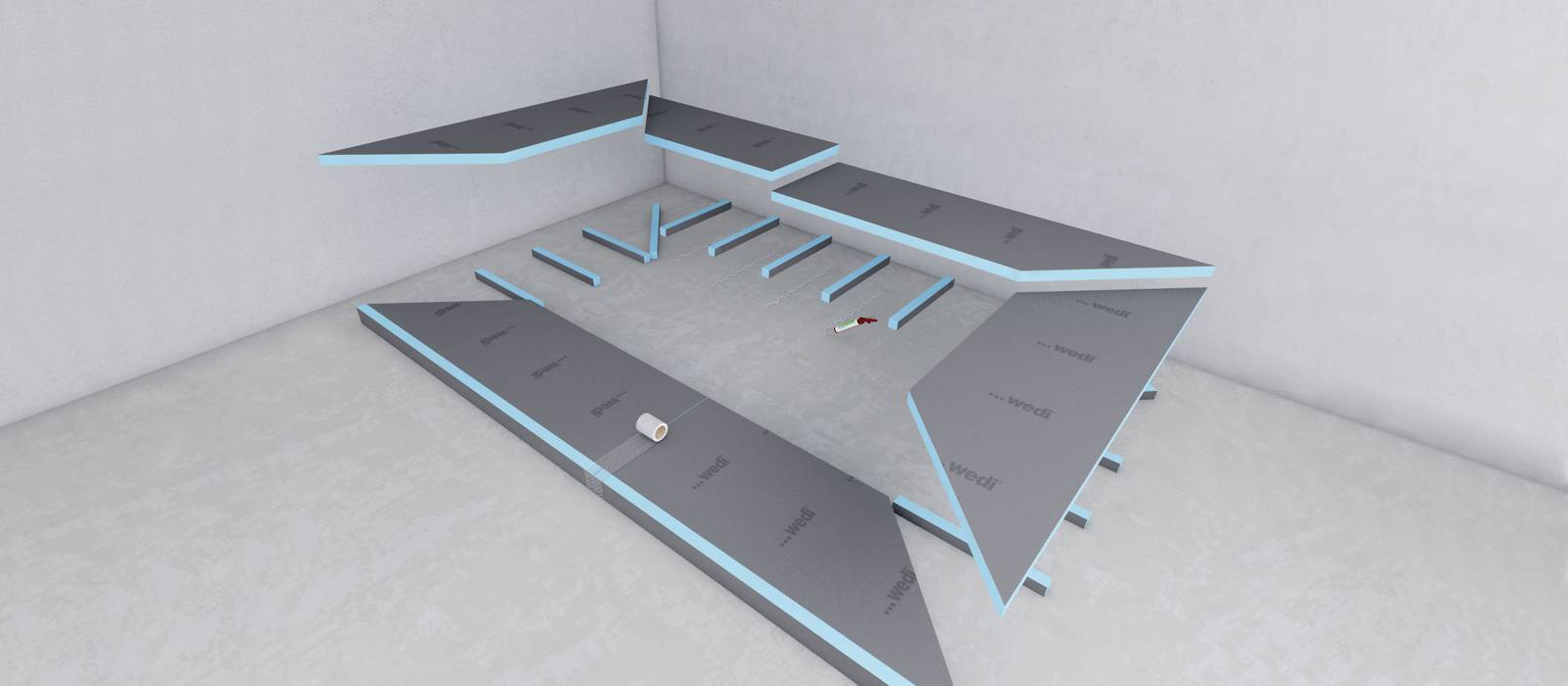

Designing and constructing with the wedi Building Board

The wedi Building Board in 50 mm thickness can also be the used for creation of steps and platforms in residential , domestic applications. After cutting and installation the wedi Building Board can be finished with any tile based surface covering (min tile dimensions on pedestals 10x10 cm).
Step 1 Step 1

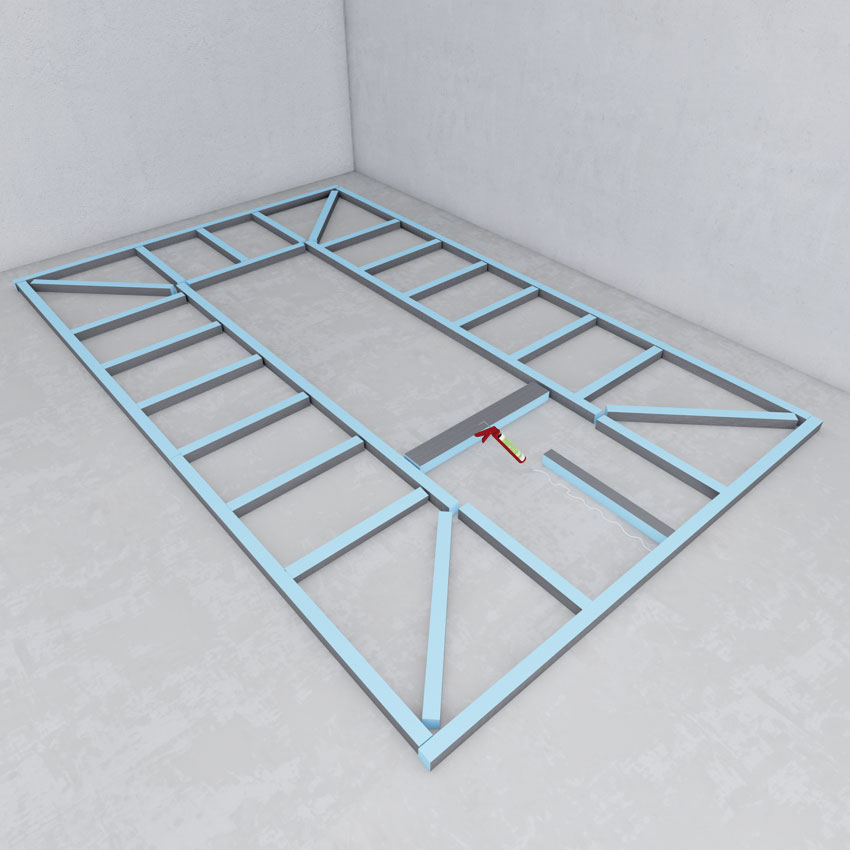

Cut wedi Building Board to size for creation of the platform supports. Set supports with a max. spacing of 18 inches (center to center).
Step 2 Step 2 Apply wedi Joint sealant to the surface edges.
Step 3 Step 3

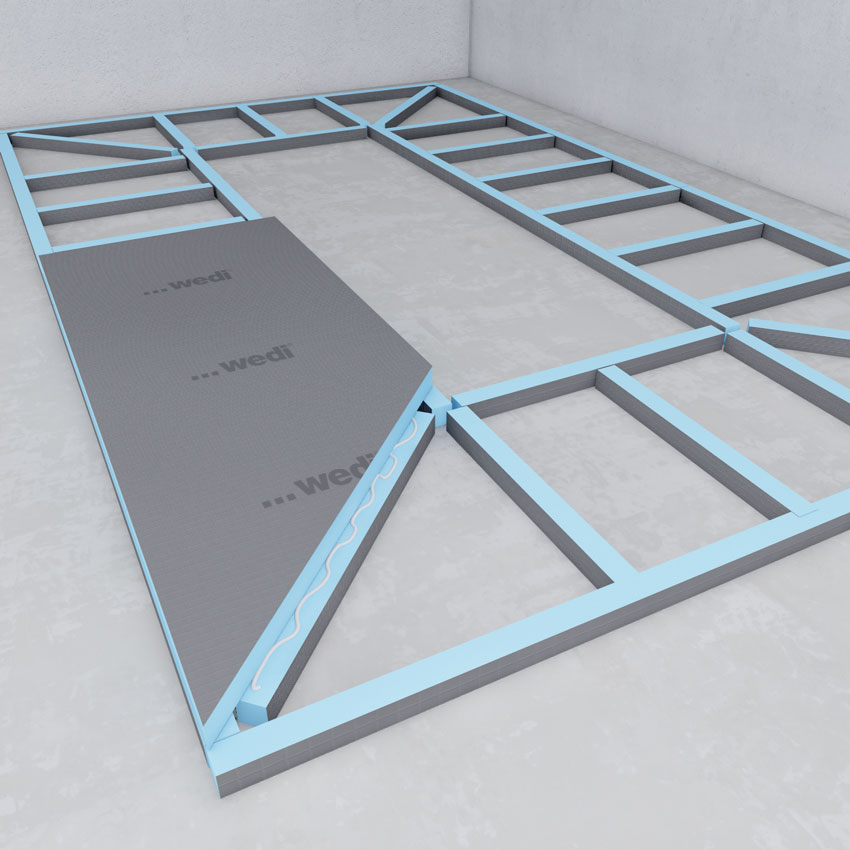

Affix Building Board as cover onto the platform supports using wedi Joint sealant. Board seams must always be supported by a support beneath (entiue length of seam).
wedi building board - Wall applications
wedi
In order to display YouTube/Vimeo videos, it is necessary that you accept marketing cookies. Please see our privacy policy for more information. To the cookie settings

At a glance

Brochure Fundo Shower & Spa 3.55 MB) Technical datasheet and assembly instructions building board standard 1.03 MB Safety data sheet wedi 610 Advesive Sealant (AUS) 0.12 MB Safety data sheet wedi 610 Advesive Sealant (NZ) 0.21 MB

wedi system components

wedi Building Boards wedi 610 Adhesive Sealant
