Suspended Ceilings

Ceiling applications for wedi building board

Besides wall and floor applications, the versatile wedi building board can also be used for levelling and suspension of ceilings. Suspension height can be individually set during installation. For areas that require a fire barrier, additional backing material may need to be considered.

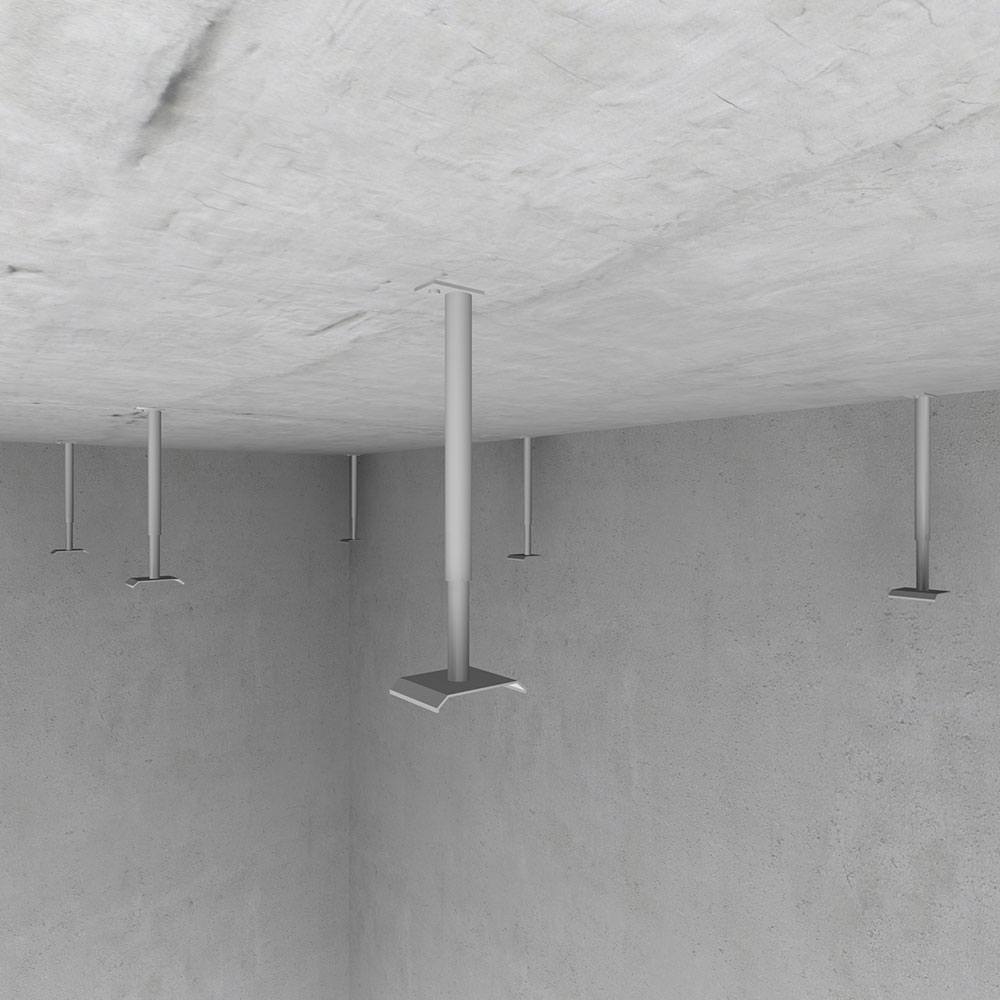

Step 1 Step 1 Install the ceiling suspension systems to the existing ceiling by using dowels, and set the desired suspension height.

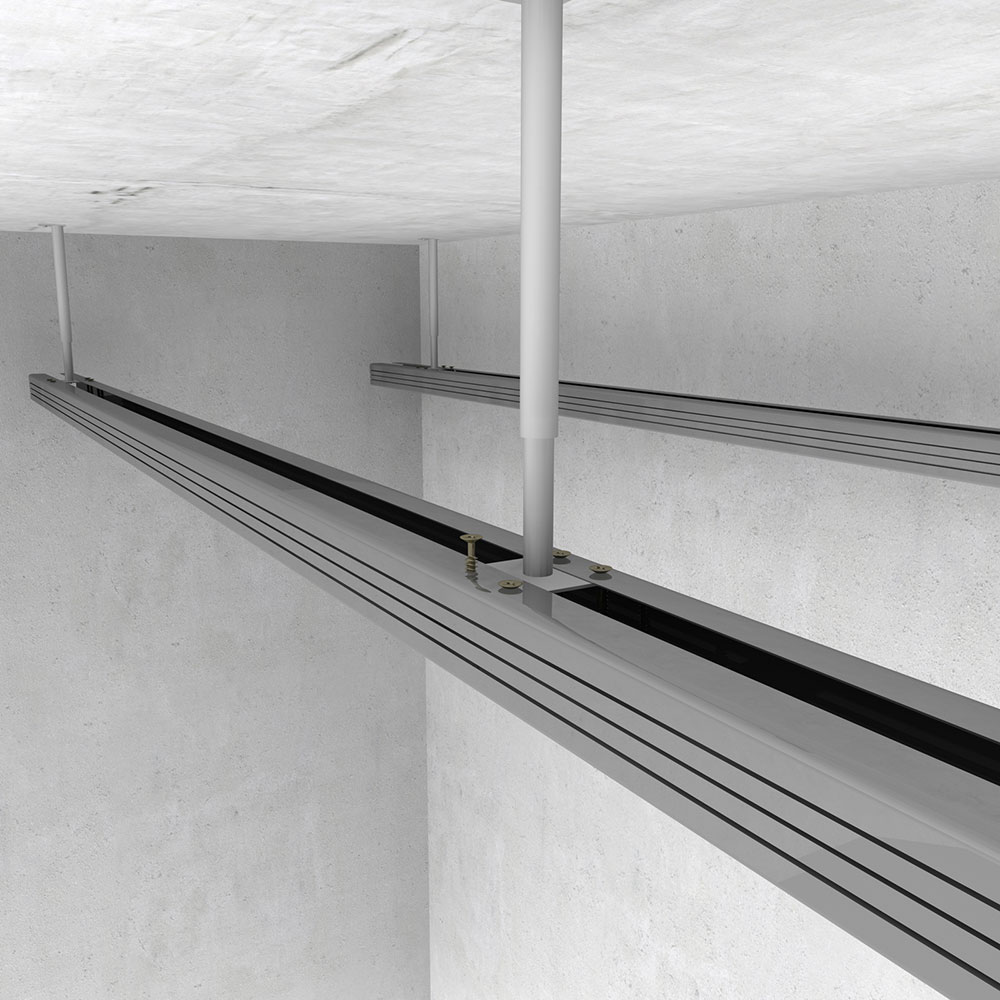

Step 2 Step 2 Install the corresponding profiles onto the already installed support.
Step 3 Step 3

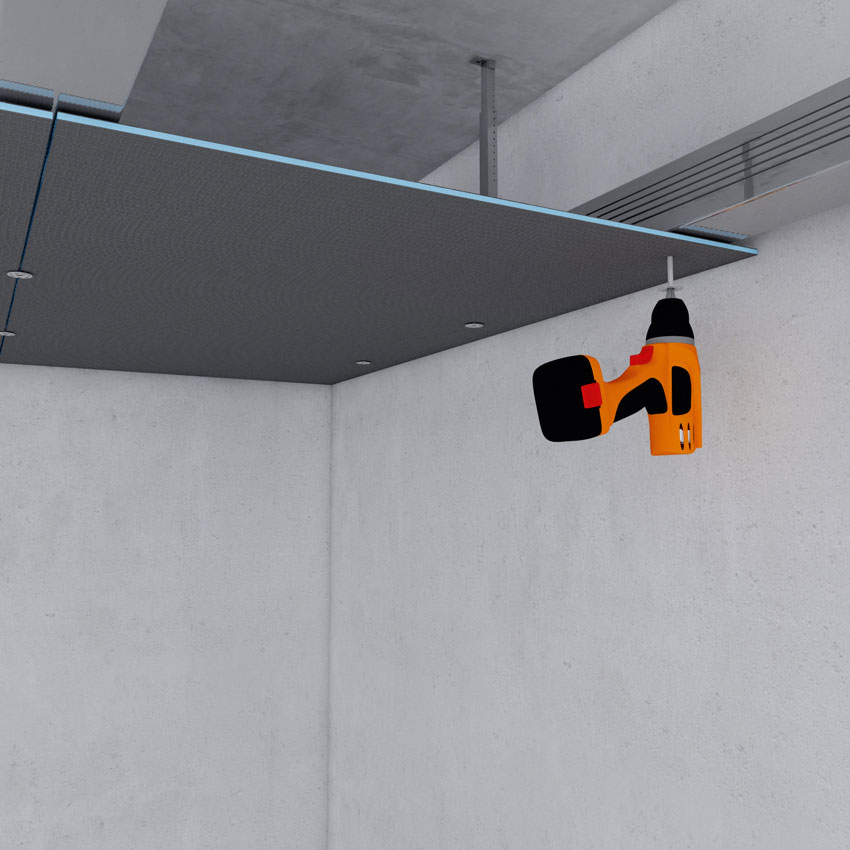

Screw wedi Building Boards to framework using either wedi Wood Screws and Washers (wooden frame) or wedi Self Tapping Screws and Washers (steel framework). The fastener pattern is 1 fastener per every 6 inches. Make sure to always use washers / fasteners in board seams to ensure smooth transitions.
Step 3 Step 3

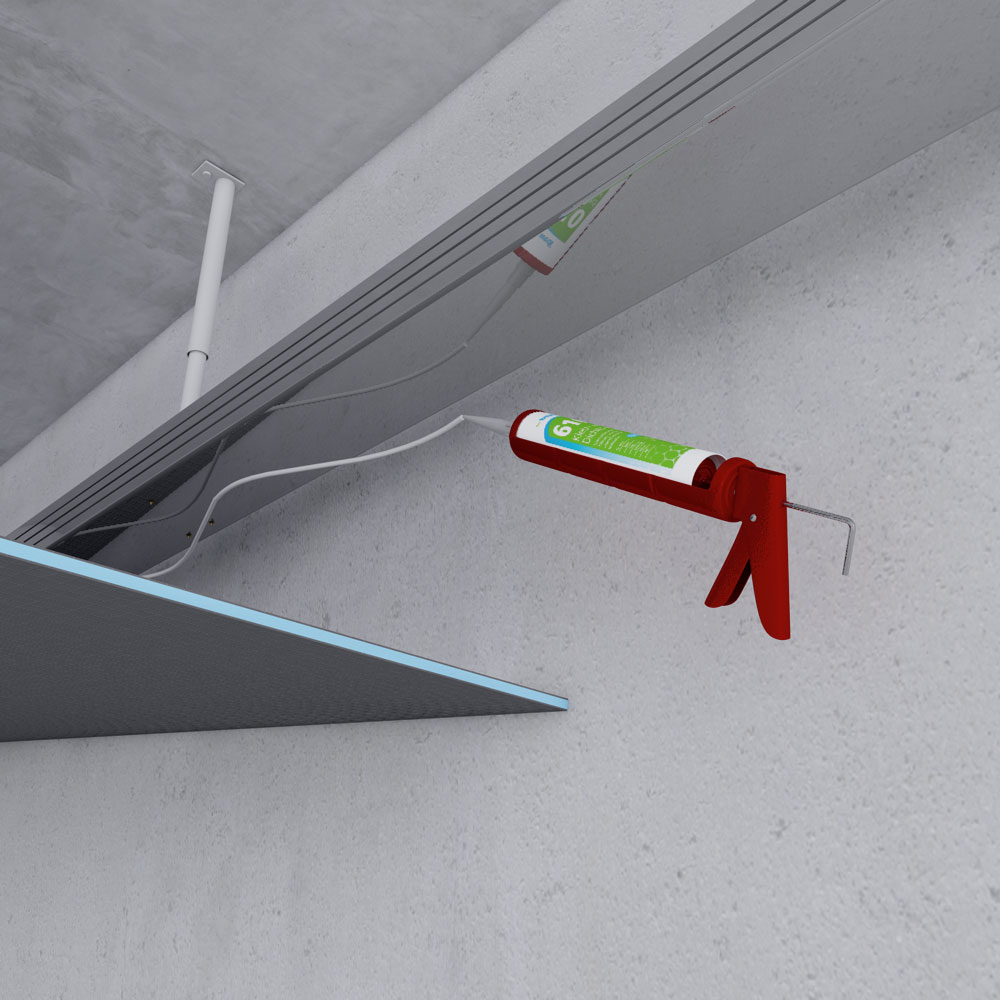

When installing wedi Building Boards to metal stud ceiling framework, use wedi 610 Adhesive Sealant in addition to wedi Self Tapping Screws and Washers.
Step 5 Step 5

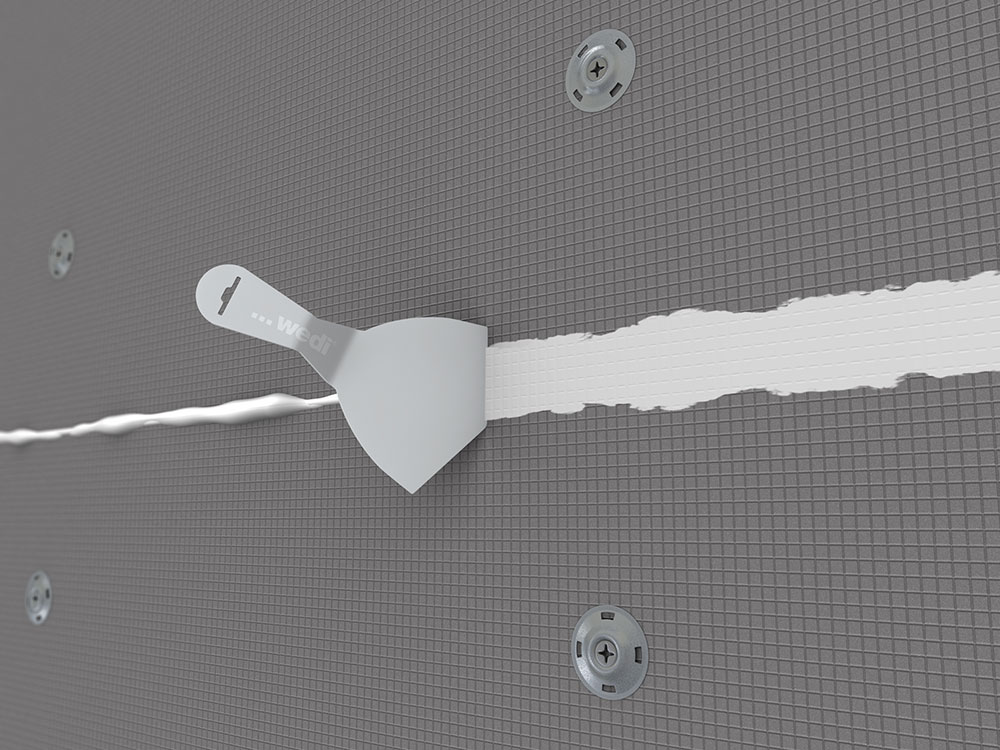

Seal all joints and fastener points using wedi 610 Adhesive Sealant or wedi Sealing Tape. In dry areas, use wedi Self Adhesive Mesh Tape.
