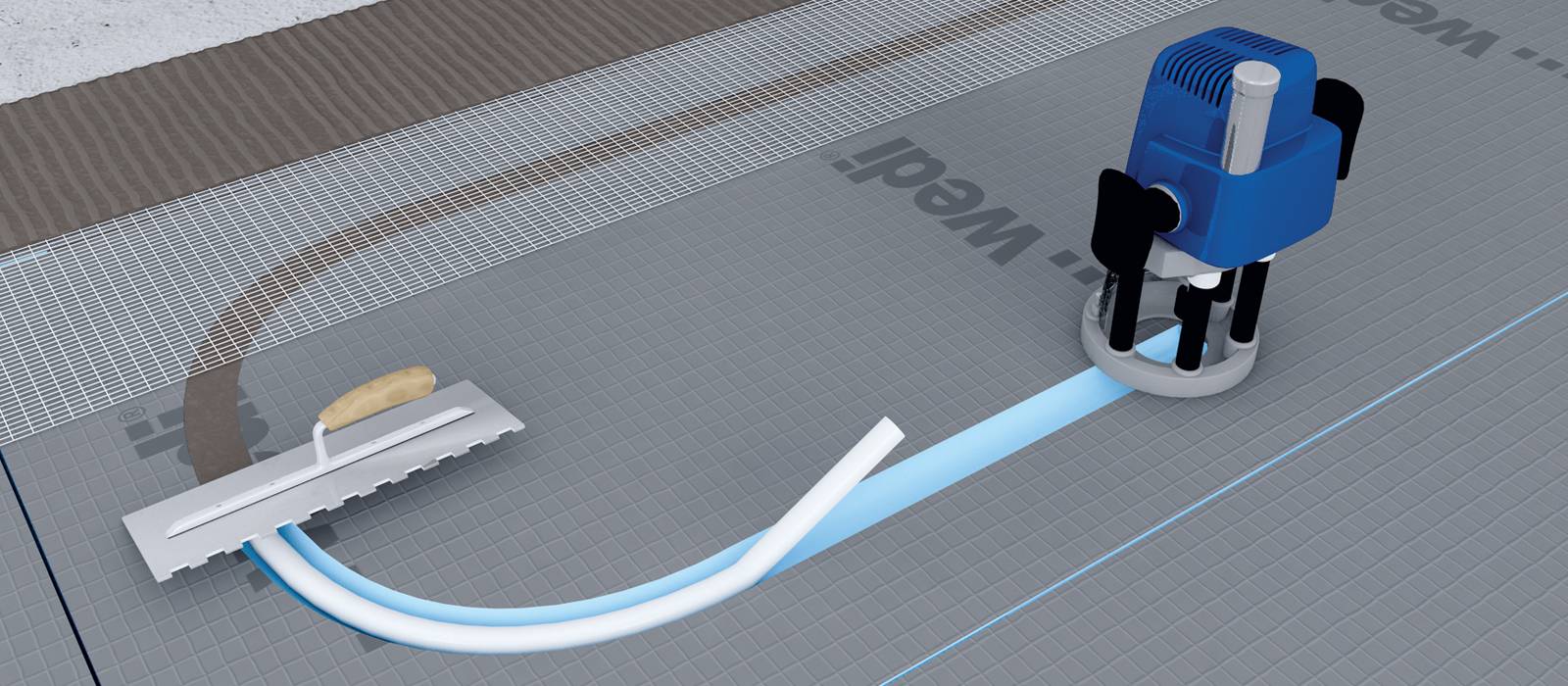

wedi Building Boards are ideally suited for use beneath floor and even wall warming systems. The building boards’ good insulation properties keep the heat away from the ground and reflect it back up in to the room, regardless of whether you have a hot-water heating system or an electric system. wedi Building Boards save energy and provide shorter warm up times around your heating system. The warmth is evenly distributed across the entire floor.

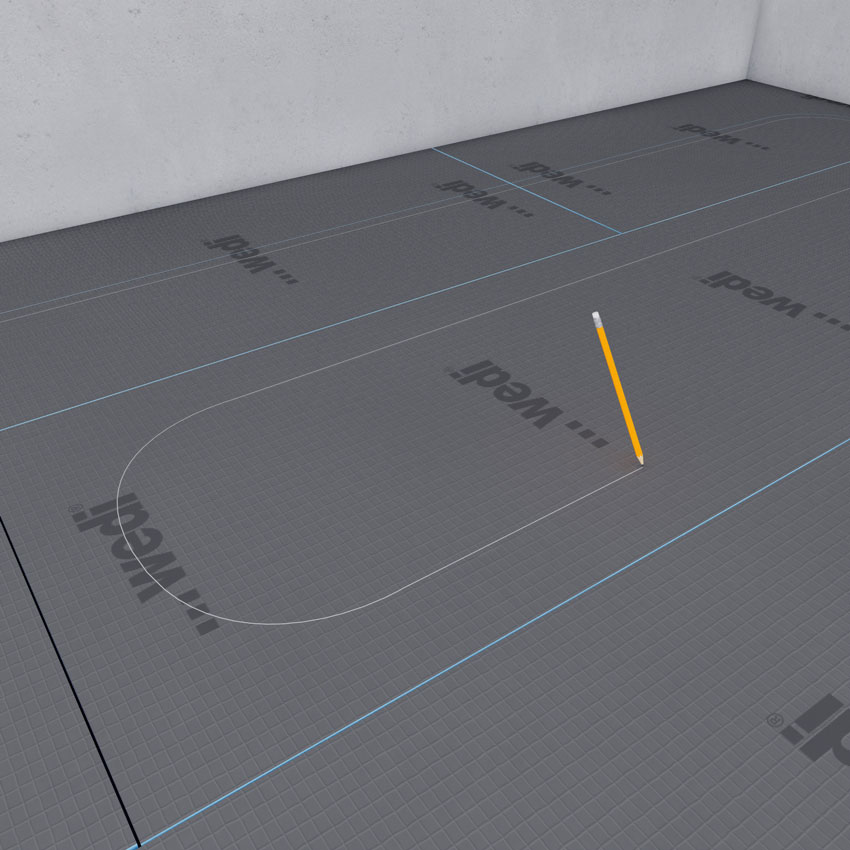

Draw ducts / grooves onto the wedi Building Board for installation of the heating system.

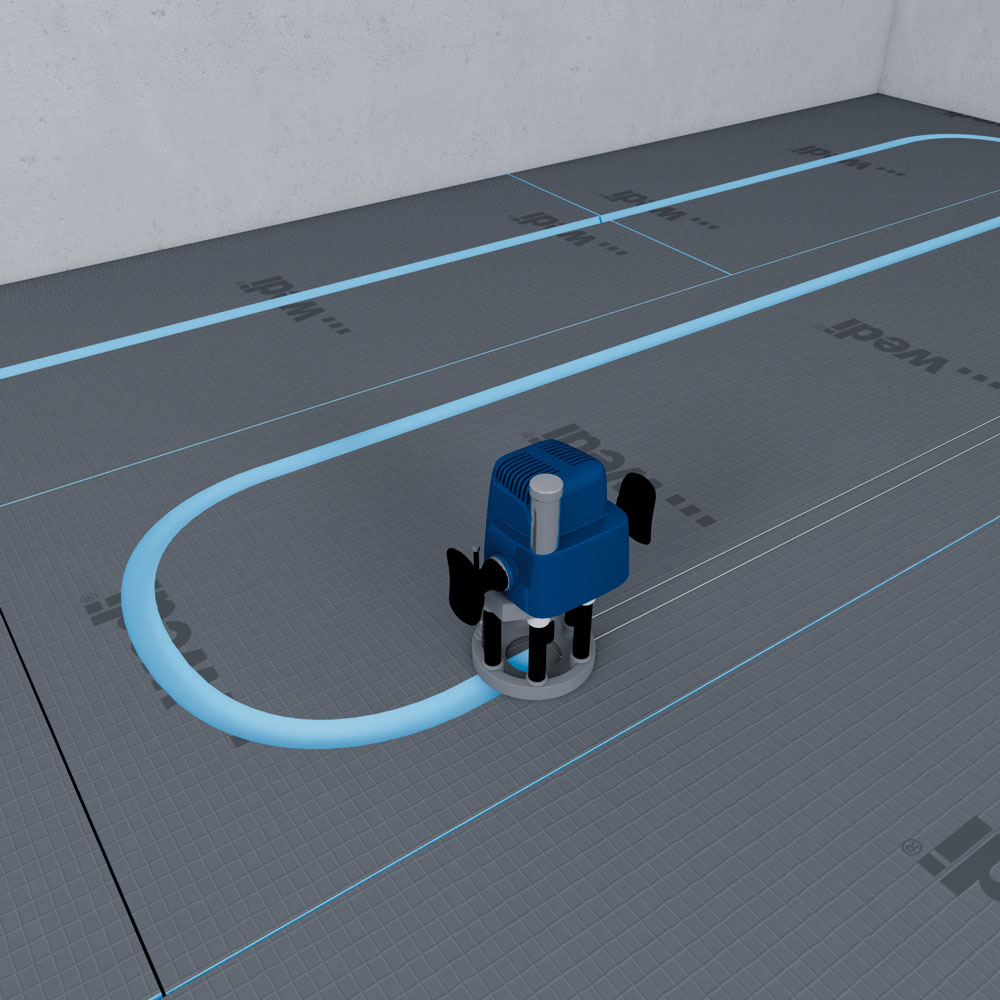

Cut grooves using a router. Cutting width should be the same as the pipe width; cutting depth should be at least 4 mm deeper. Make sure at minimum a remaining wedi board foam thickness of 6 mm remains intact below the pipe.

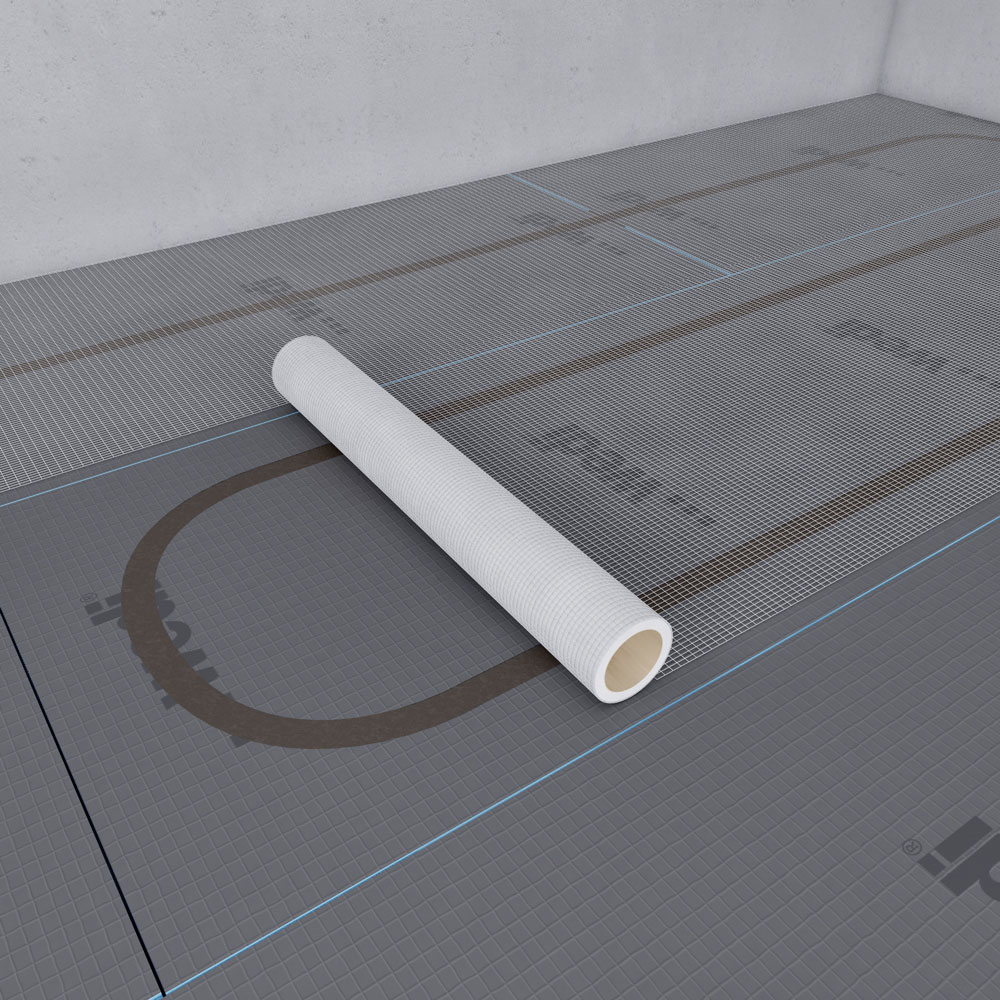

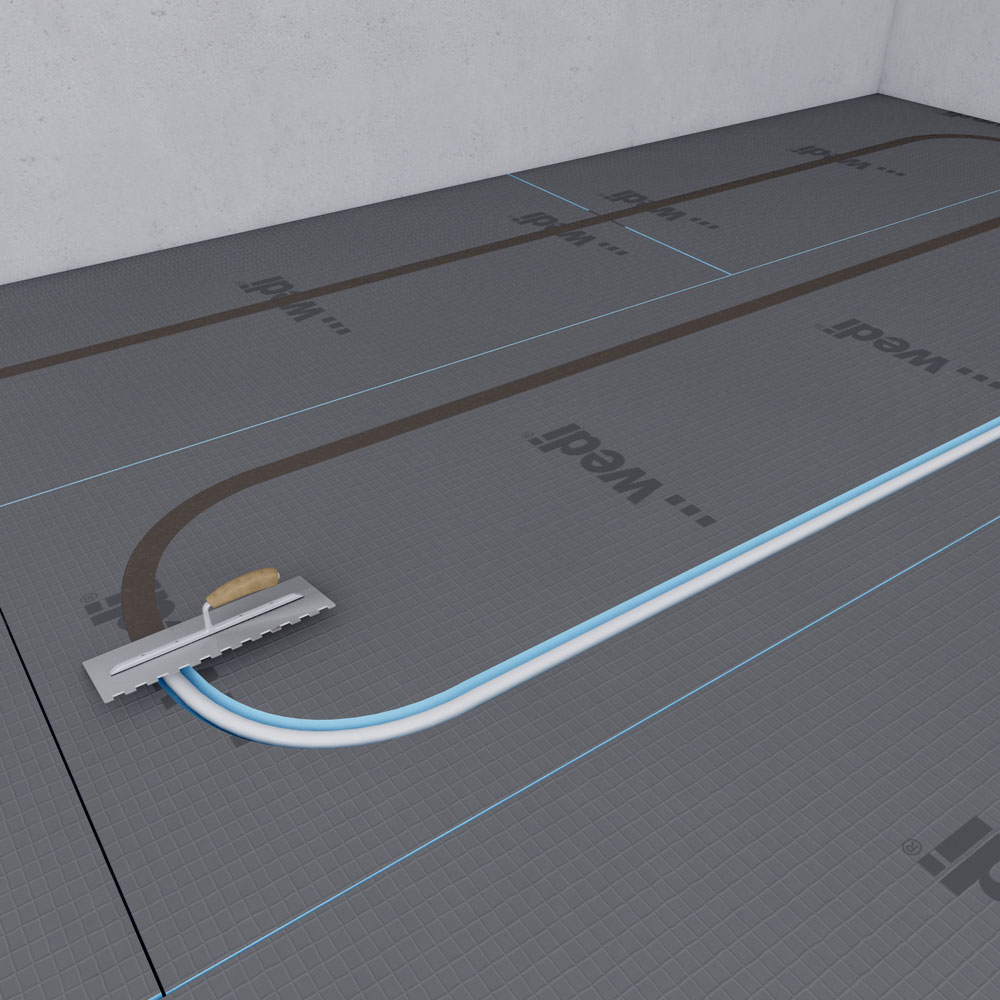

Apply wedi’s wide self adhesive reinforcement tape over the installed ducts. Start tiling. Tiles smaller than 50 mm x 50 mm should not be used over hydronic system installation surfaces.
For hot-water systems, ducts can be cut into the building board and other wedi elements quickly and easily.

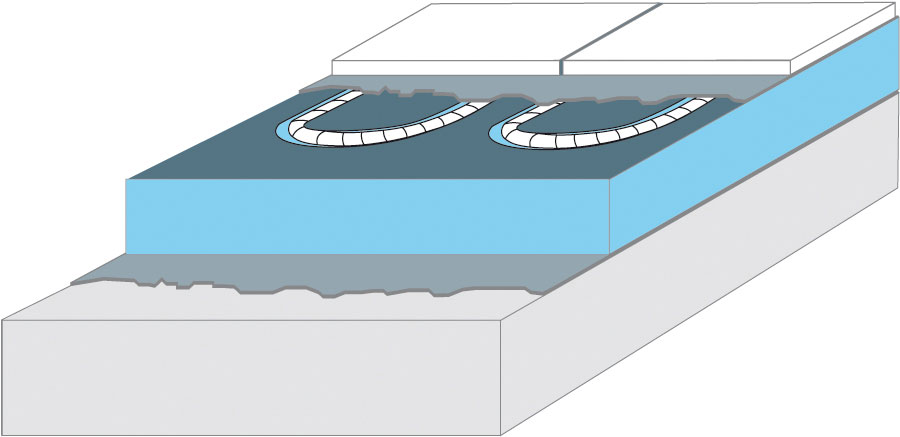

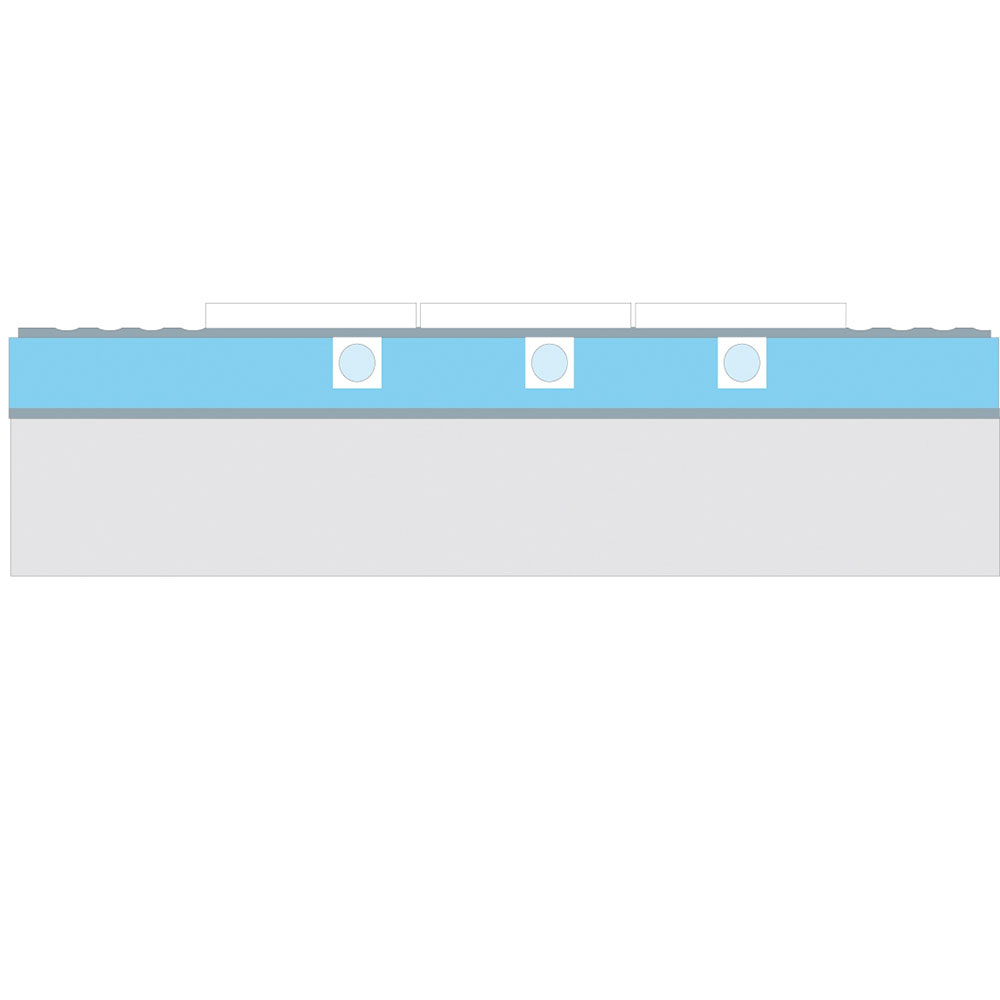

The building board serves as a combined form of heat insulation and a base for installation of tile and serves as waterproofing protection if needed.
wedi Building Board wedi 610 Adhesive sealant
On elements which have already been tiled and reinforced (e.g. wedi building boards, Fundo floor elements, Sanoasa benches, Sanoasa loungers), floor heating can be installed in accordance with the manufacturer's instructions. Only approved heating systems may be used.
