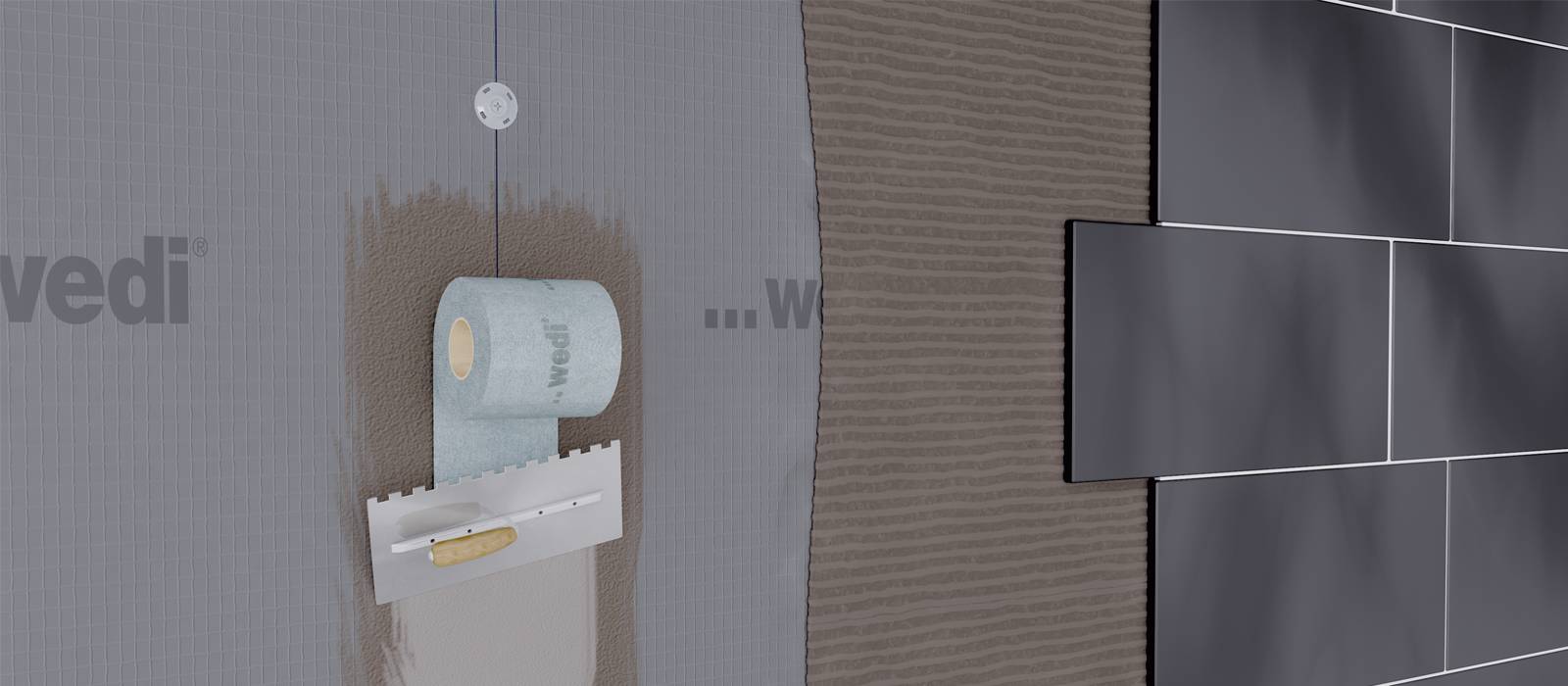

The wedi building boards can be applied to shower walls and wet areas perpendicular or parallel to the framing, saving time and reducing joint frequency. The boards are fastened quickly and easily in place using wedi fasteners. Once the boards are secured and seams and fasteners are sealed with wedi 610 Adhesive Sealant, tiling can begin immediately. All in a fraction of the time previously required by traditional methods. The wedi building board combines tile backer board and waterproofing in one product and installation step. This saves time and cost. Its solid waterproof core eliminates concerns typically associated with alternative waterproofing products such as pinholes or delamination. The entire shower structure is protected by wedi's warranty: from bottom to top!

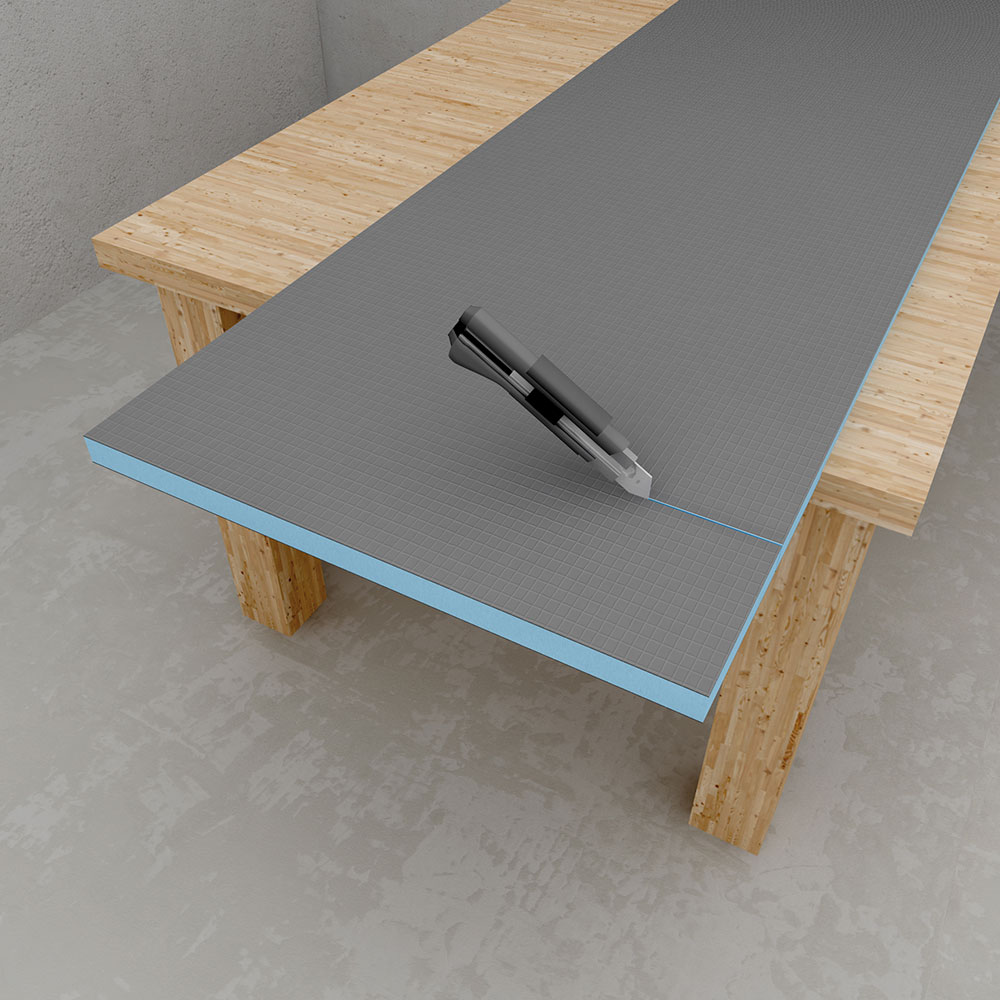

Using only a utility knife, wedi Building Board is effortlessly cut and shaped.

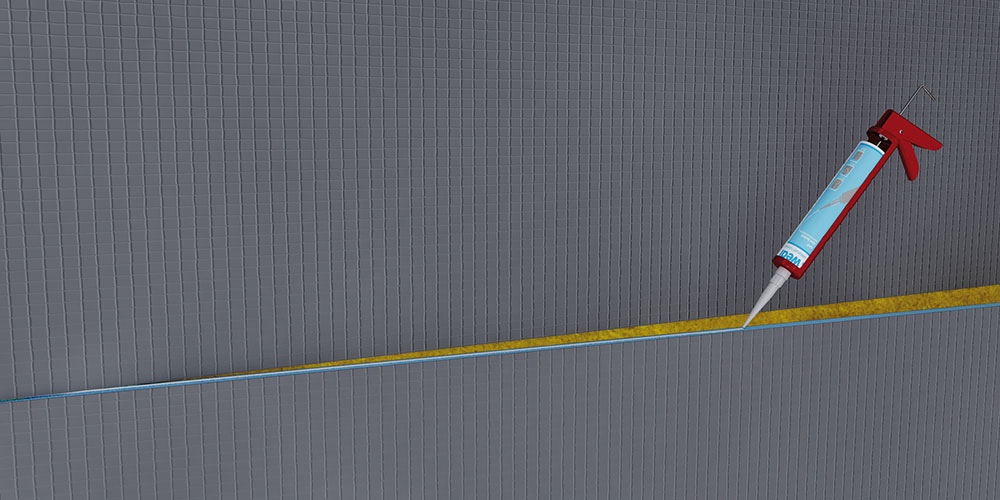

A continuous 1/2” bead of wedi 610 Adhesive Sealant is applied on the foam edges of a wedi Building Board before another board is joined by butting tightly.

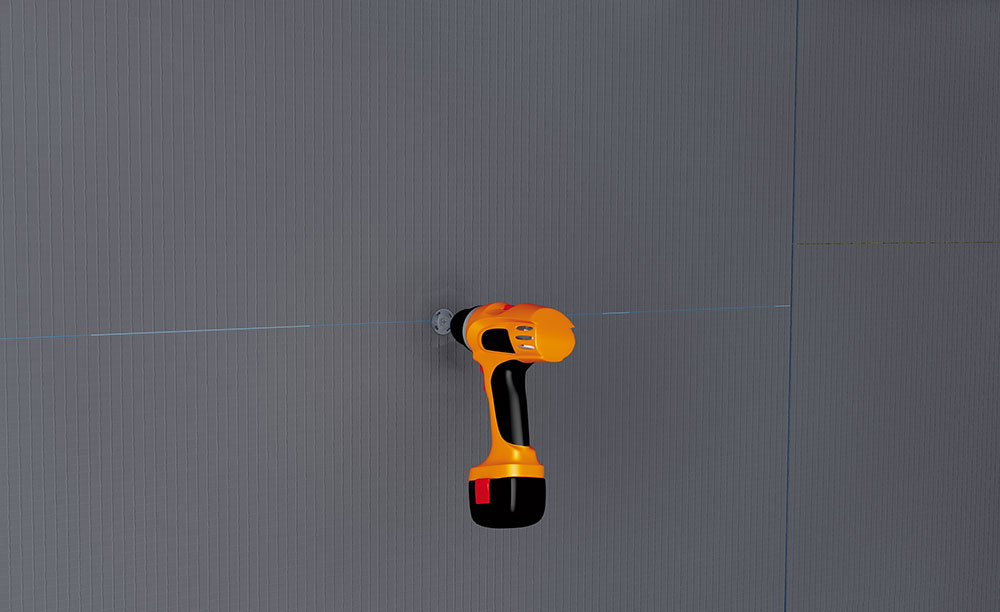

Apply 1 wedi fastener per every 12”, with an extra fastener applied directly in the seam to provide a flush transition between boards. On a ceiling, apply 1 wedi fastener per every 6”. The washer heads are dimpled below the surface of the wedi Building Boardso a flat surface is maintained.

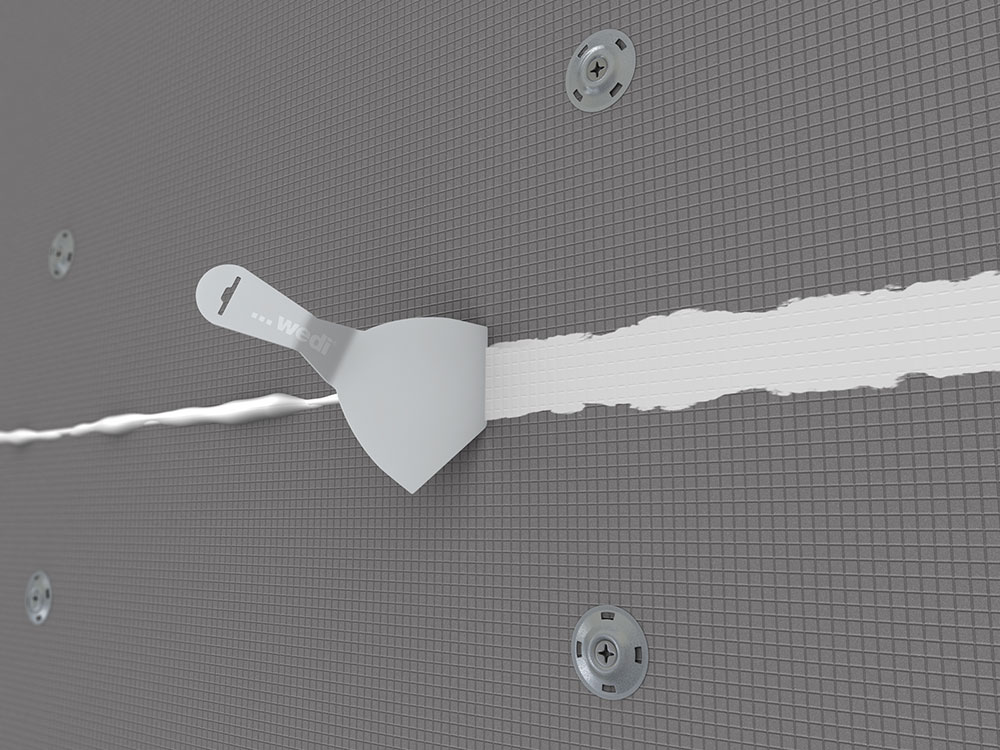

All excess wedi sealant is spread flat over all joints using a putty knife. Where needed, an extra bead of sealant is applied on top of the joints and spread flat. The joints should be covered a full 3/4” – 1” on both sides of the seam. Especially wedi 610 Adhesive Sealant provides little build up making for square and tight corner areas perfect for tiling. All fastener locations are waterproofed using wedi 610 Adhesive Sealant spread flat and widely over each washer.
wedi building boards wedi 610 Adhesive sealant
