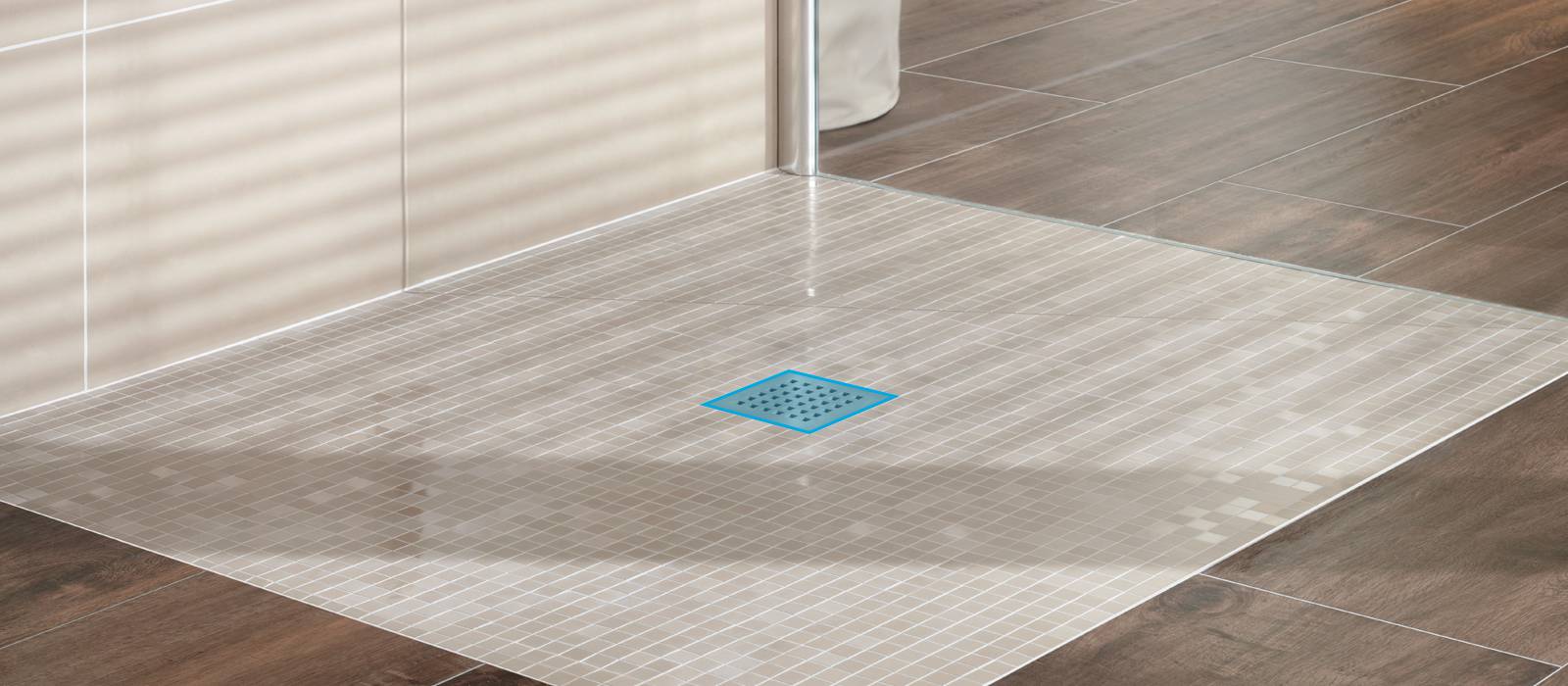

Fundo vertical drain (point drainage)
Low installation height and waterproof security

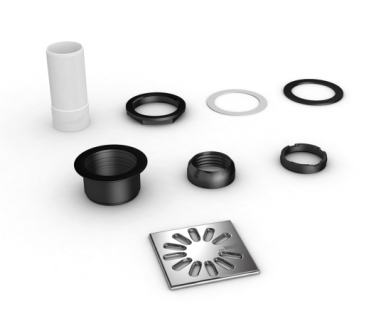

Fundo Primo and Ligno Drain Kit (Vertical drain standard)

„Fundo drains.“

wedi offers the compatible and systemised drain technology for the flush-to-floor shower elements. Because of the low installation height and water-tight security design concept, these systems are well suited for use in new builds and renovations. There is a variety of different versions for vertical designs available:

Only the wedi drainage system for Fundo can be used for Fundo floor elements.

The drains can be combined with the following Fundo series:

Fundo Primo
Fundo Ligno

Drain units connect to Schedule 40 pipe Item sold as kit contain Drain unit and Cover Set standard

Technical data

For 2” Floor Pipe Schedule 40 ABS or PVC unless sealing gasket is changed t seal to different pipe ( see optional sealing gaskets available)

Frame with stainless steel grid available	100 x 100 mm
Fundo drain vertical, DN50	1,10 l/s; 66,0 l/min

Product sizes

Order no.	Designation	Unit
US10000040	Fundo Primo and Ligno Drain Kit	1 pc

Area of application

In order to display YouTube videos, it is necessary that you accept marketing cookies. Please see our privacy policy for more information. To the cookie settings

Areas of use Fundo drains

In domestic residential construction
In publicly accessible buildings and workplaces complying
In accessible dwellings complying with DIN 18040 part 2 (note specifications for minimum tile size if wheelchair access is planned, see technical properties)
As a construction seal combined with tile and natural stone (floors subject to moderate surface flowing water in interior areas; directly loaded floors in rooms in which tap or cleaning water is used very frequently or for long periods, and floors of indoor and outdoor pools that are filled with water with the properties of drinking water).
