Point drainage on suspended timber floors - Fundo Ligno Plus

Floor-level shower systems

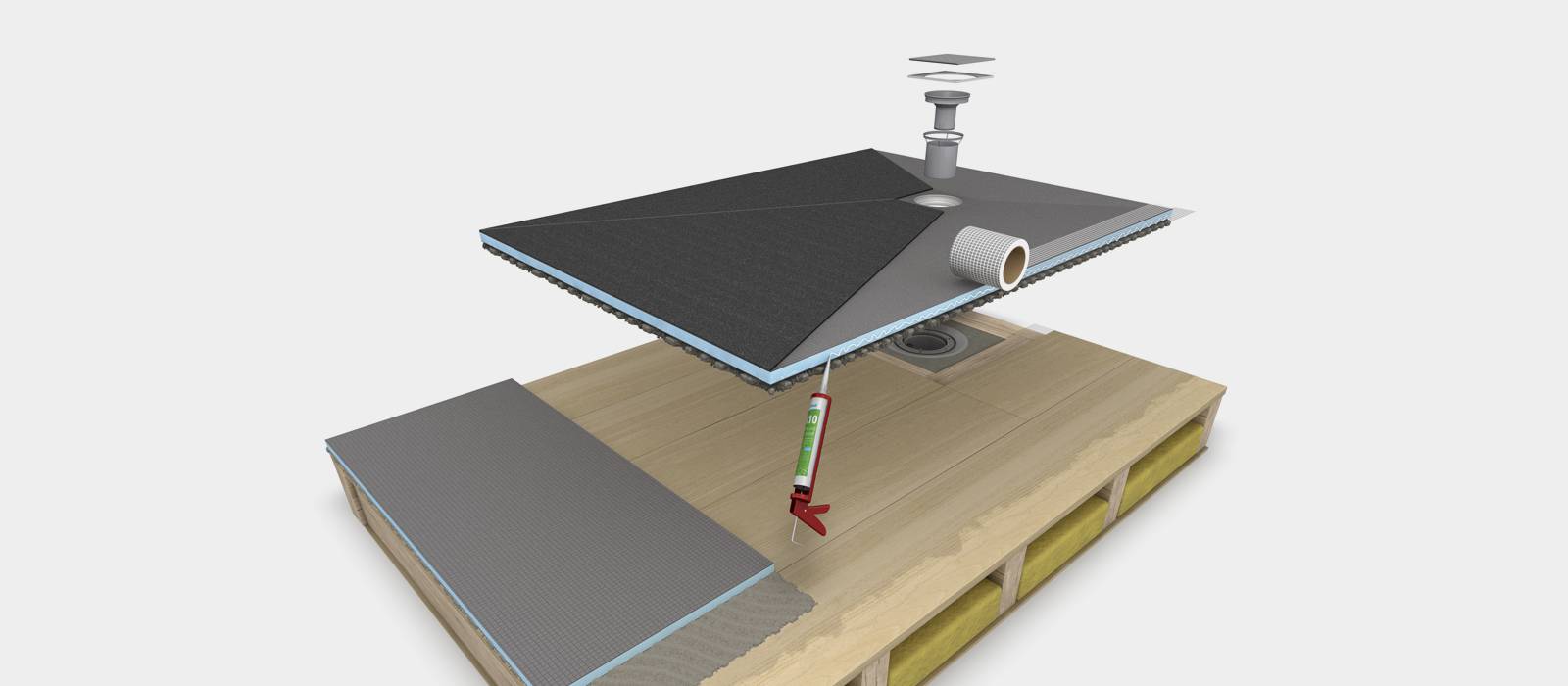

In addition to the integrated version, the wedi Fundo Ligno Plus floor element can also be installed on the suspended timber floor. The height-adjusting wedi building boards are also used in this installation prozess, which is just as simple as the previous ones. Here, the joins are sealed with wedi 610.
Step 1 Step 1

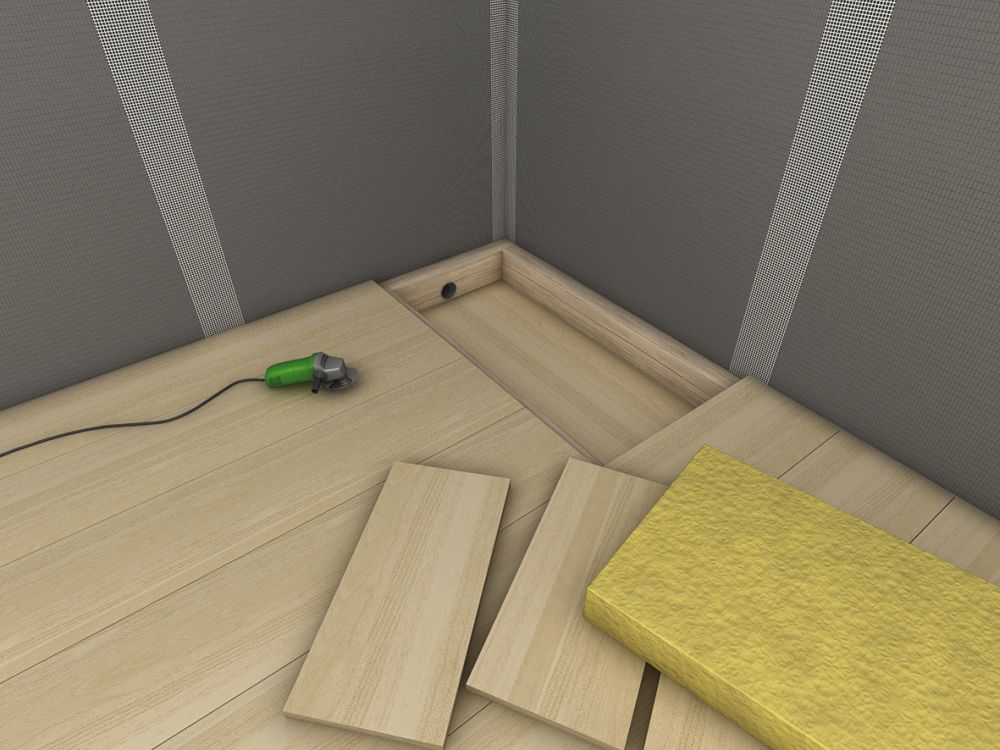

Cut out the timber beam position in the drain pot area and remove the insulating material underneath.
Step 2 Step 2

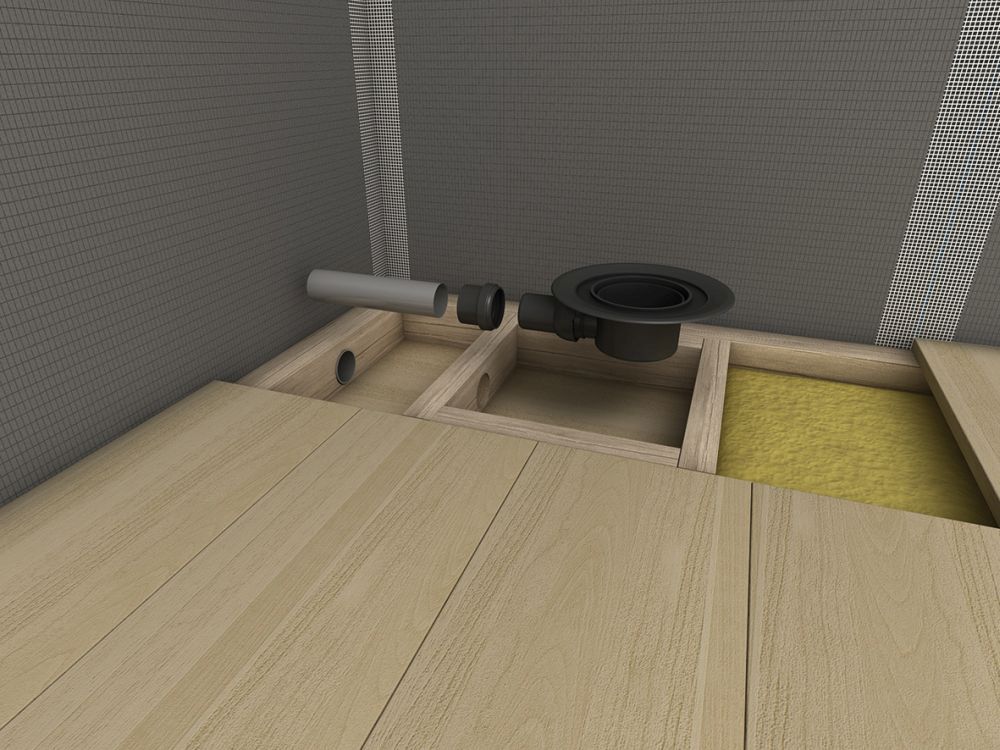

Byg forskalling i afvandingspotteområdet (35 x 35 cm) ...
Step 3 Step 3

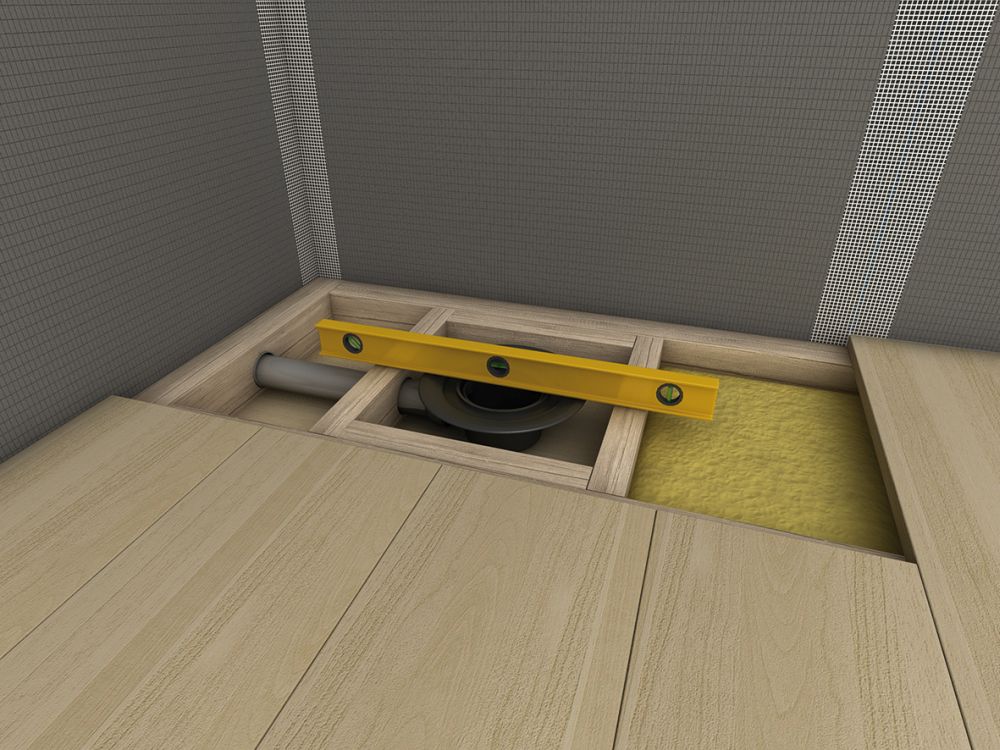

... and check that the drain is secure.



Step 4 Step 4

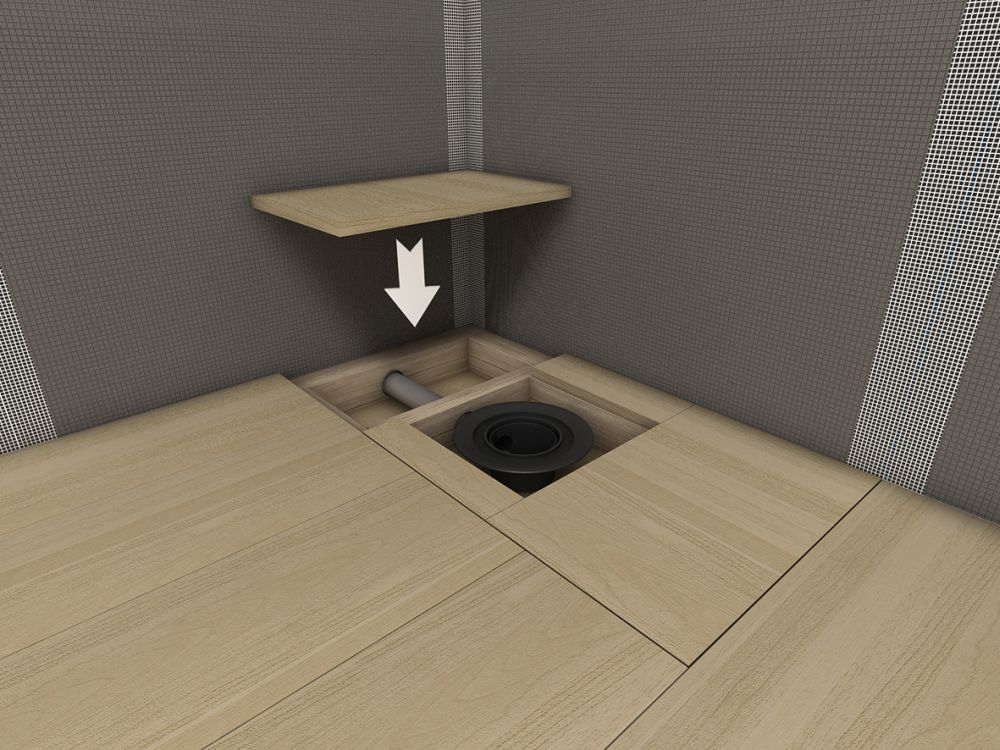

Close all the openings as far as the drain pot opening using boards.
Step 5 Step 5

Test om afløb passer ordentligt.
Step 6 Step 6
Step 7 Step 7

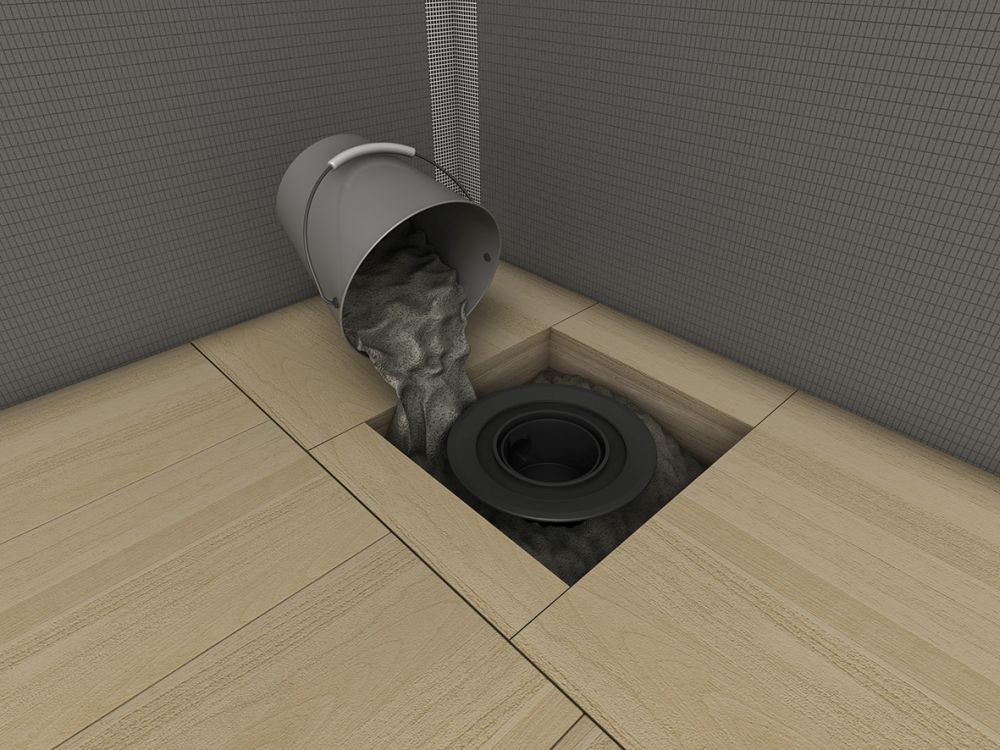

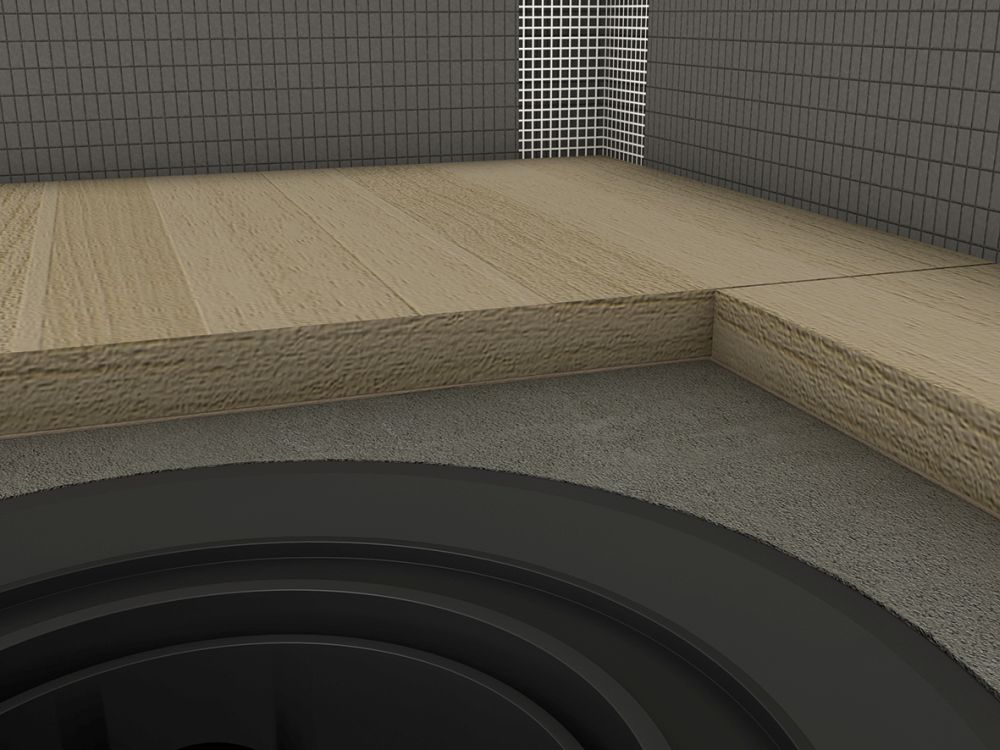

Fill the recess with earth-moist screed.
Step 8 Step 8
Step 9 Step 9

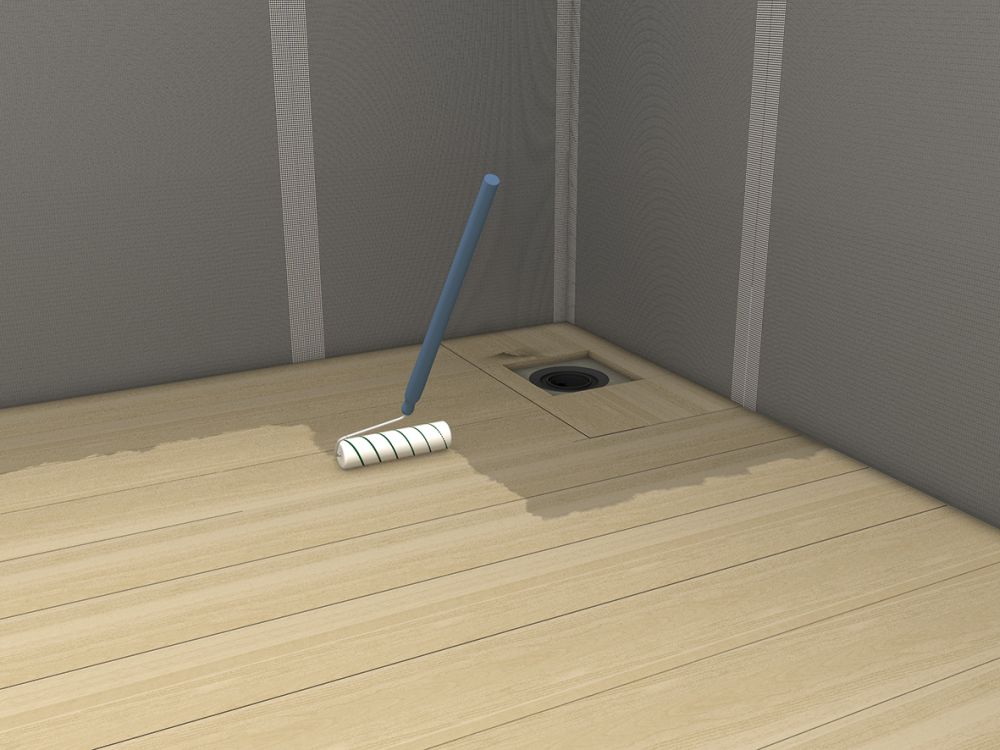

Prime the entire timber floor.
Step 10 Step 10

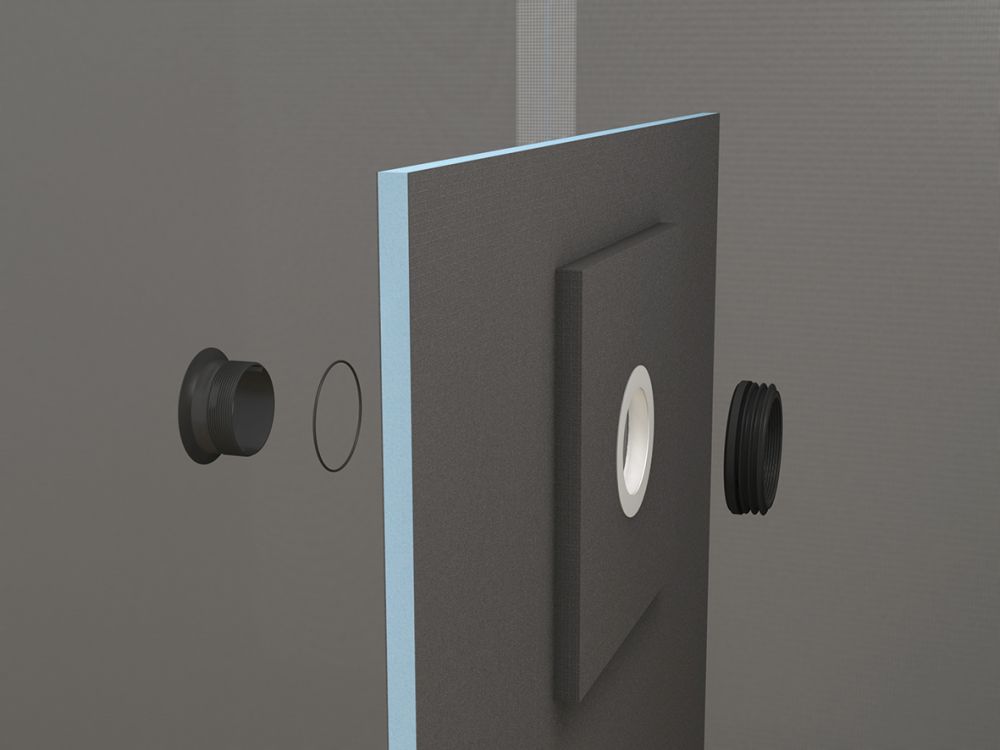

Insert the O-ring into the plastic frame' s groove from above and tighten the screw valve of the shower tray using sealing insert.
Step 11 Step 11

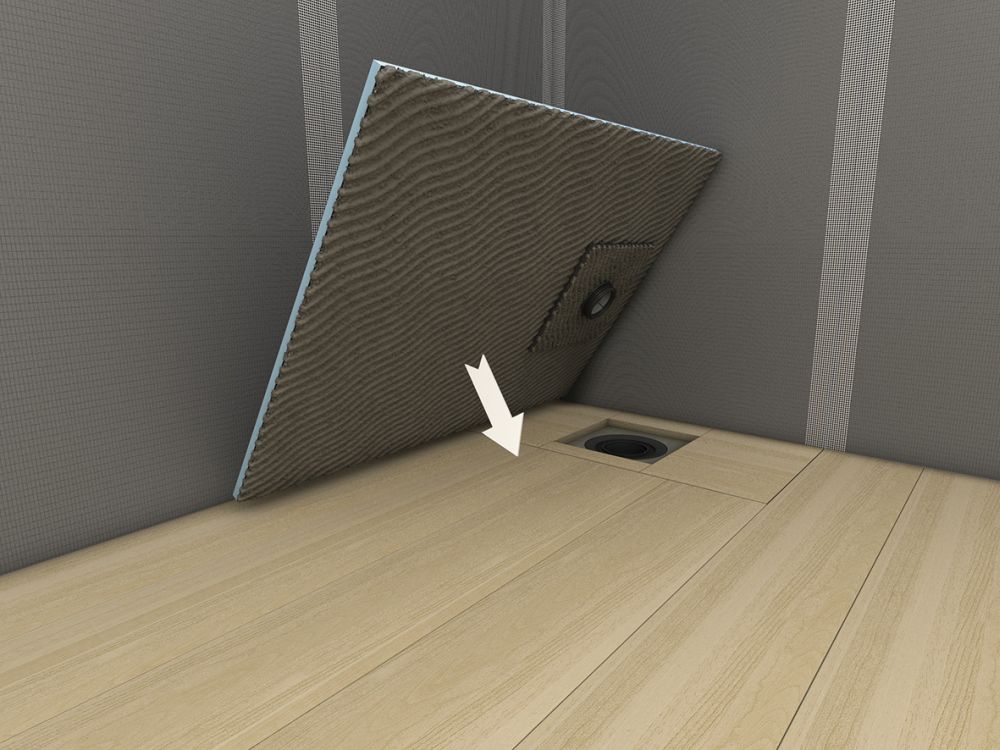

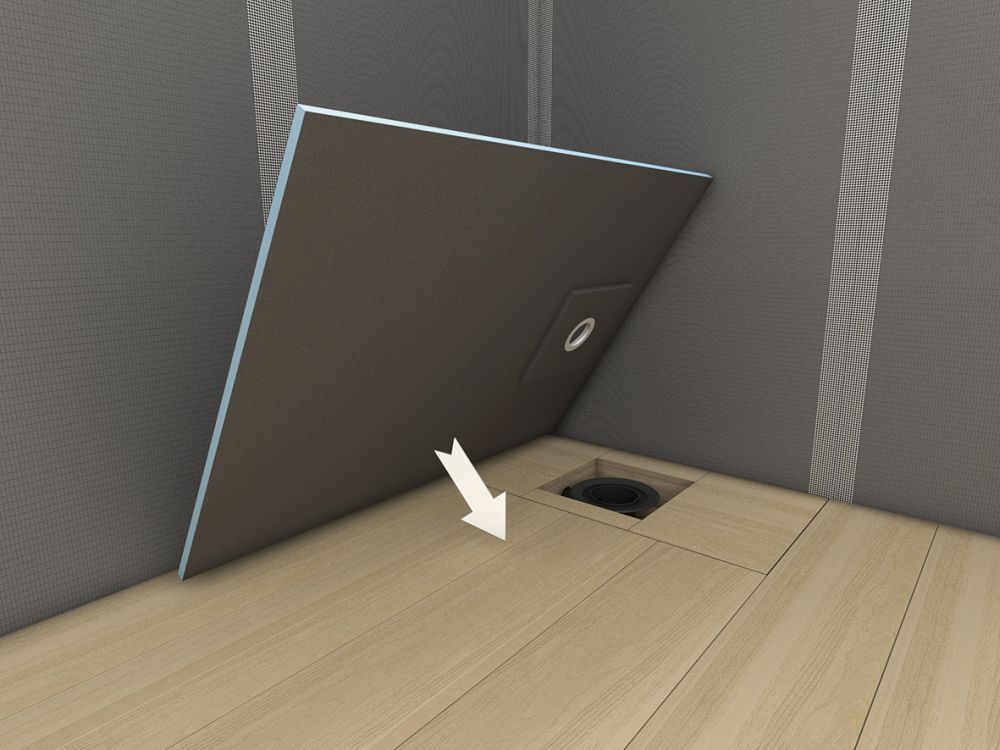

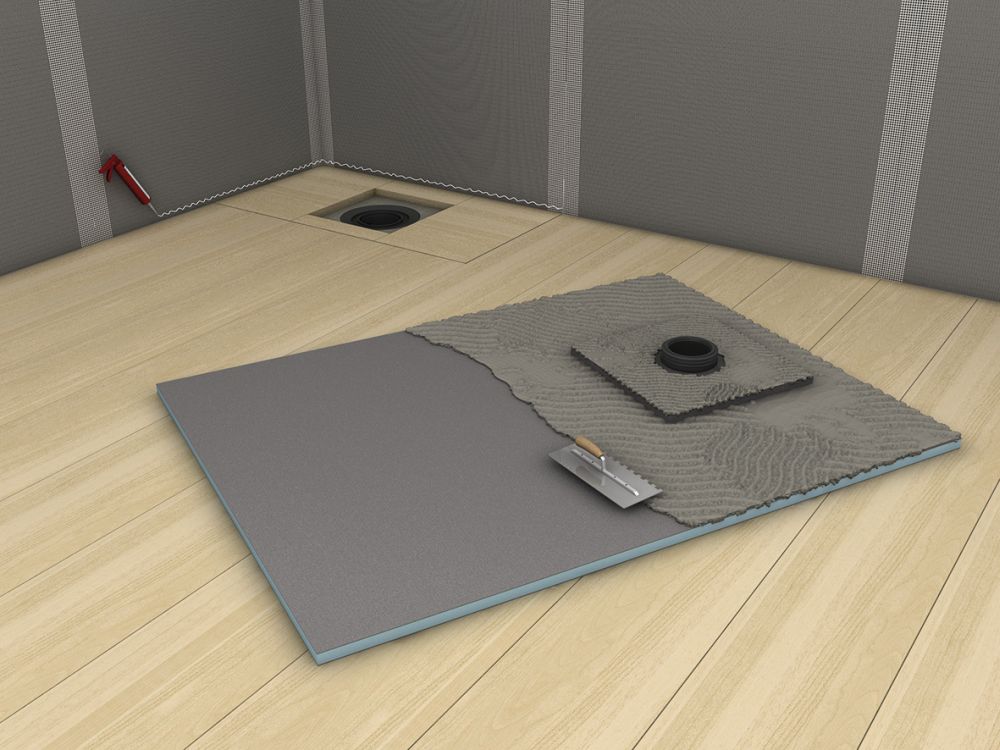

Apply tile adhesive all over the underside of the shower element.
Step 12 Step 12
Step 13 Step 13

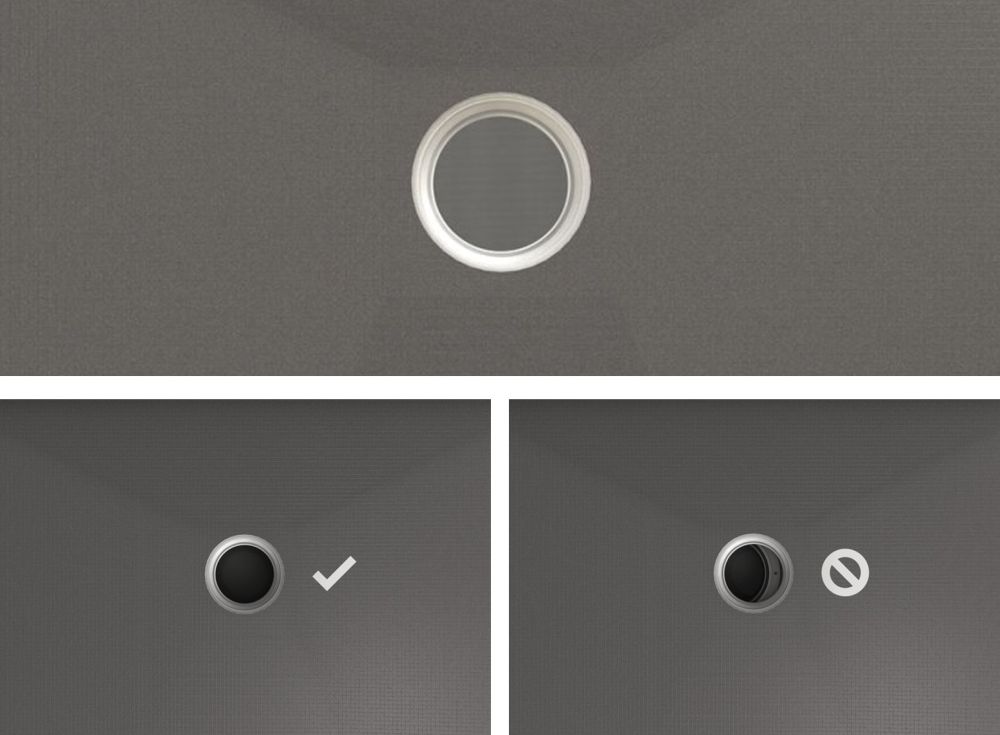

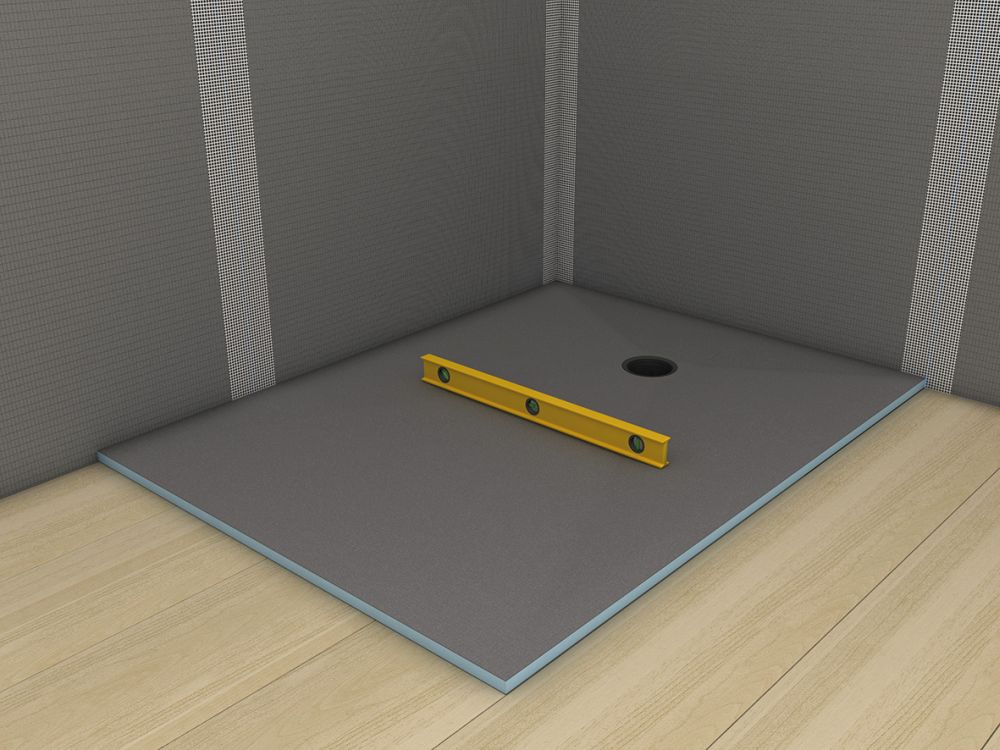

Check the drain position of the wedi Fundo Ligno Plus element and adapt it, if necessary.
Step 14 Step 14

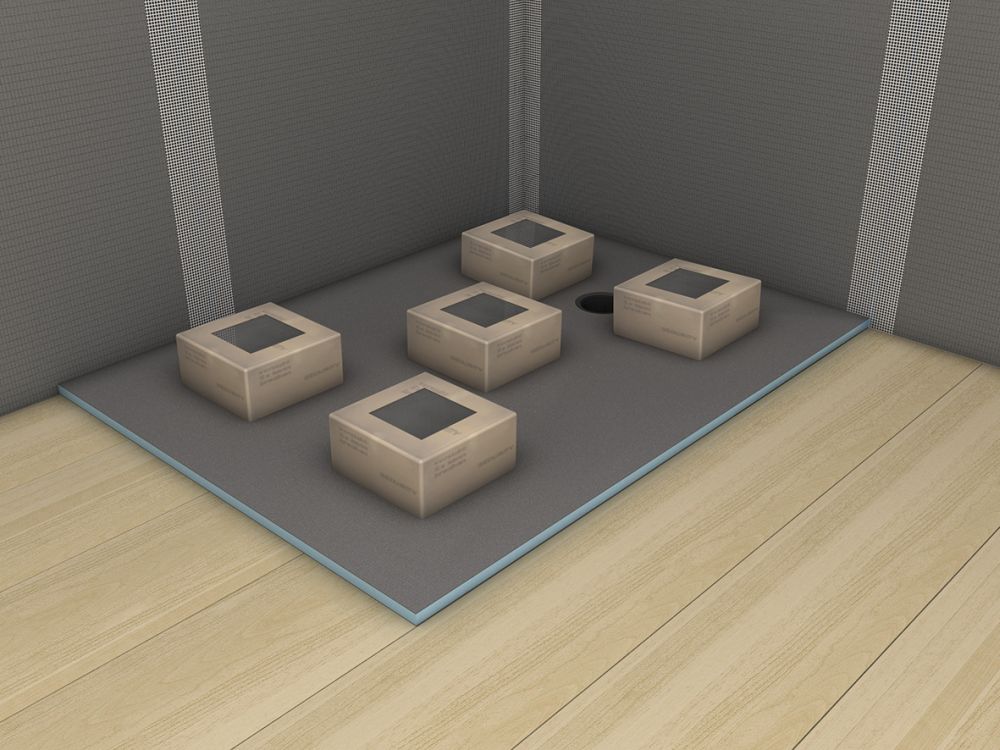

Weight the element down for 24 hours.

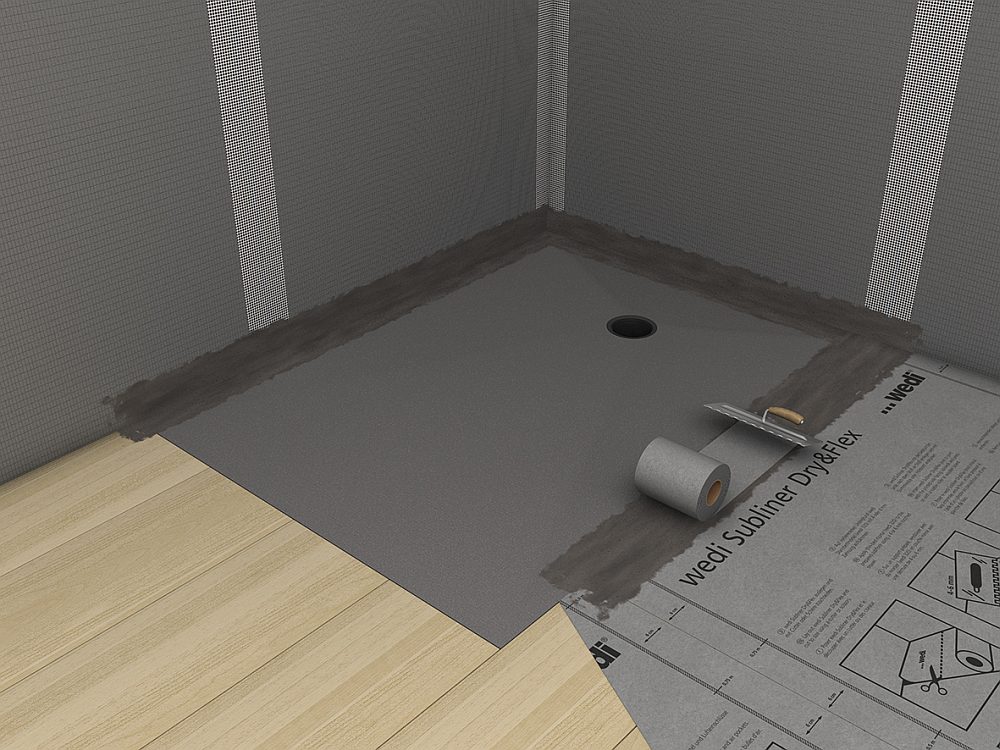

Step 15 Step 15
Step 16 Step 16

Bring the drain frame to the height of the top tile edge and secure in the bed of adhessive.
Step 17 Step 17

If the tile is thicker than 15 mm, use the ramping element to adjust the height.
Step 18 Step 18

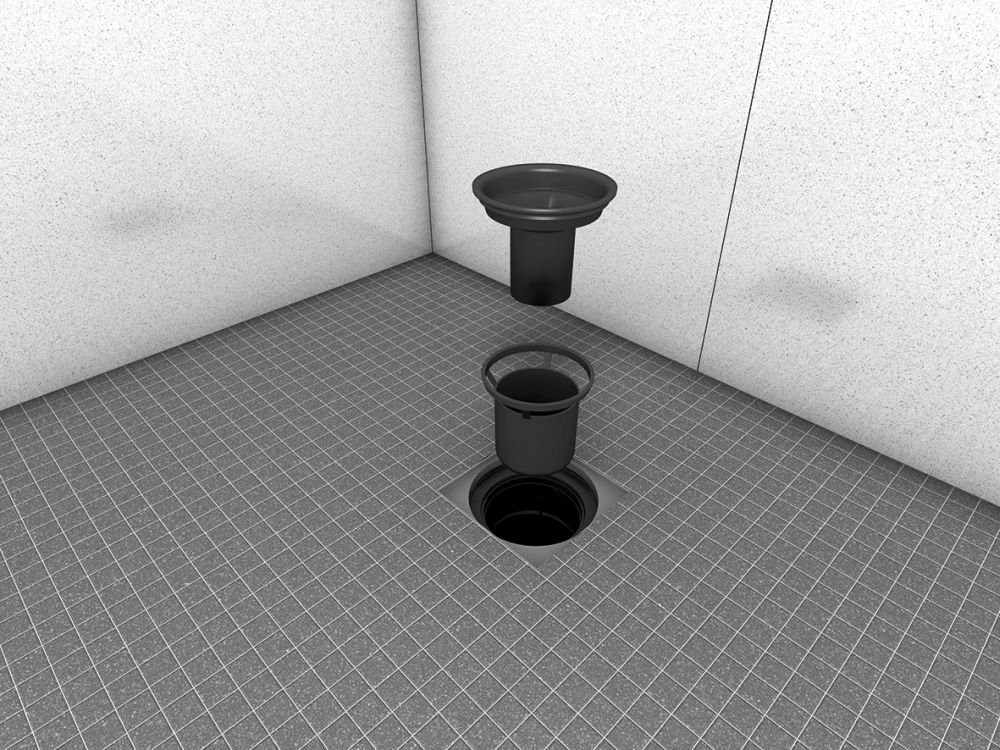

Tile the element. Insert the shower insert and odour trap.
Step 20 Step 20

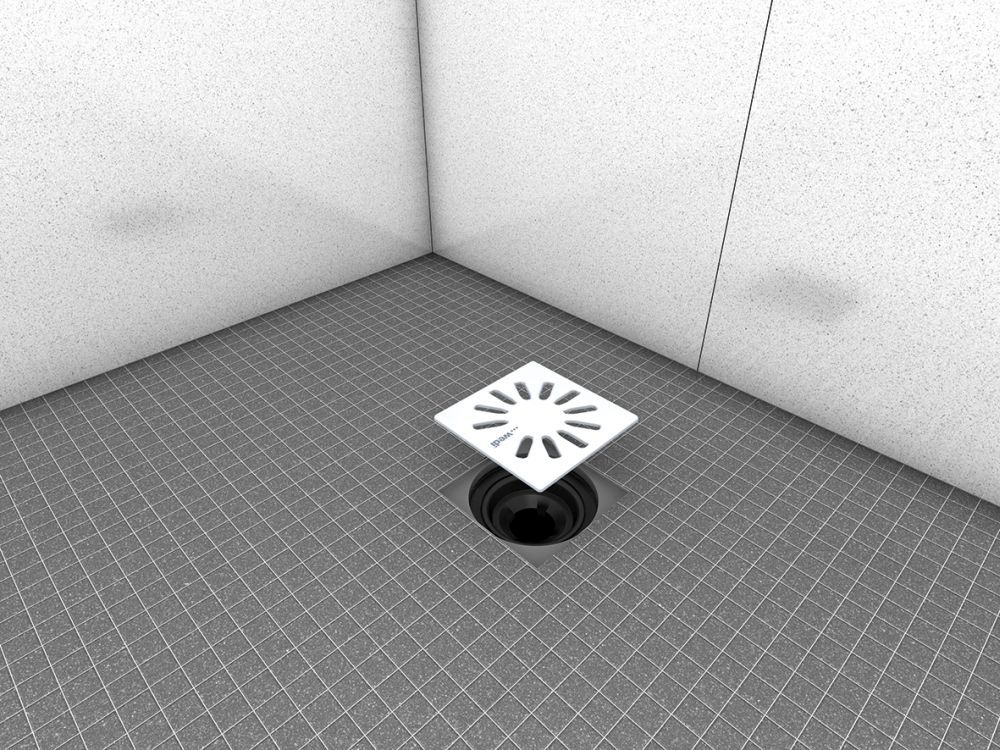

Insert the stainless steel grid. The siphon can be cleaned at any time.
