Fundo horizontal drain (point drainage)Low installation height and waterproof security
Horizontal drain (point drainage)
„Fundo drains.“
Product information
wedi offers the compatible and systemised drain technology for the flush-to-floor shower elements. Because of the low installation height and water-tight security design concept, these systems are well suited for use in new builds and renovations. There is a variety of different versions for vertical designs available:
- Design variations:

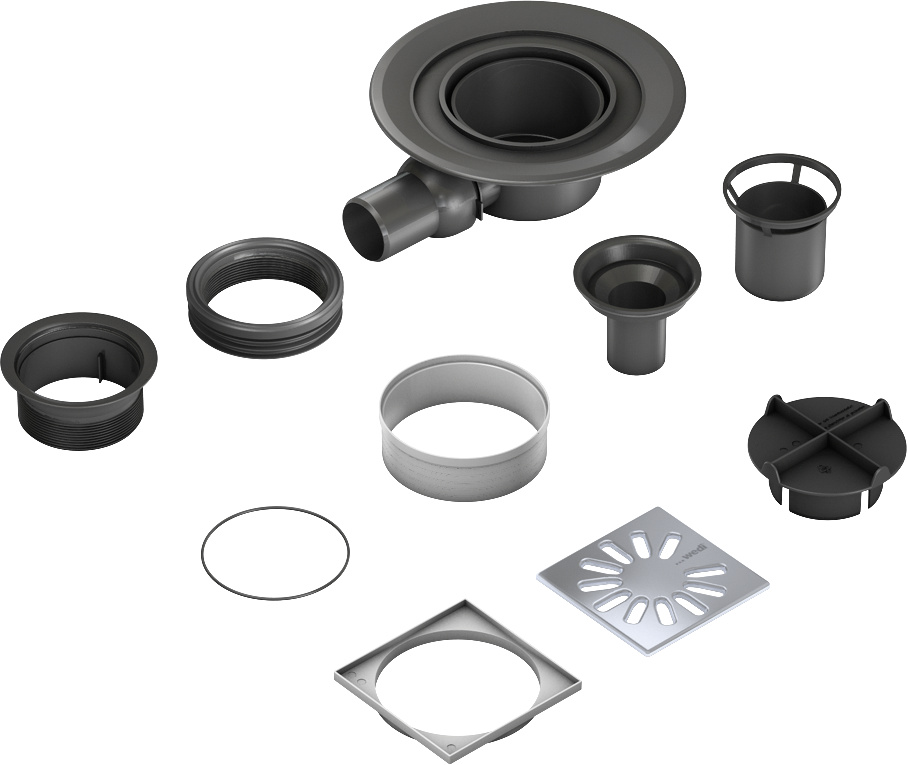

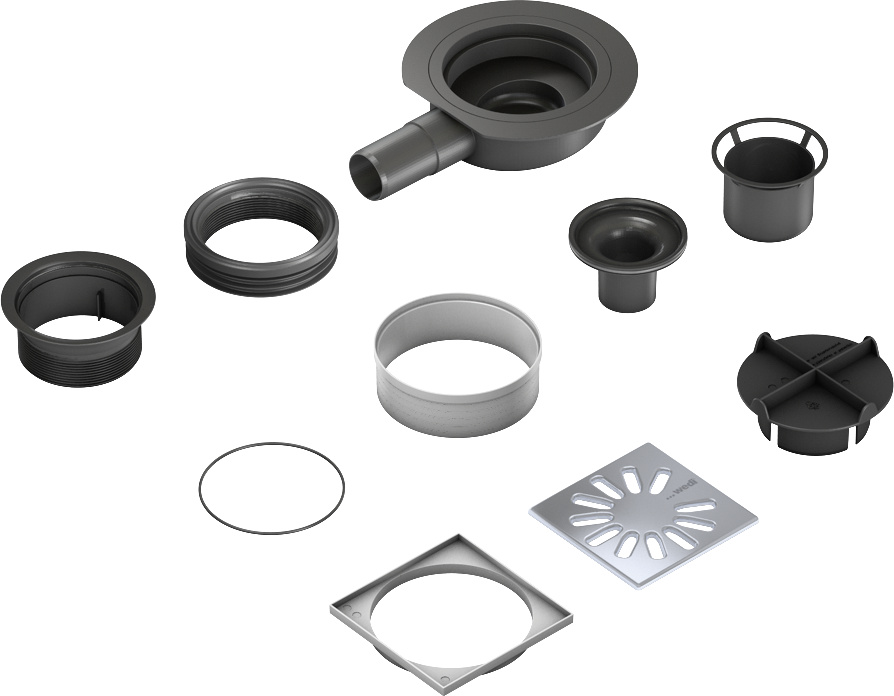

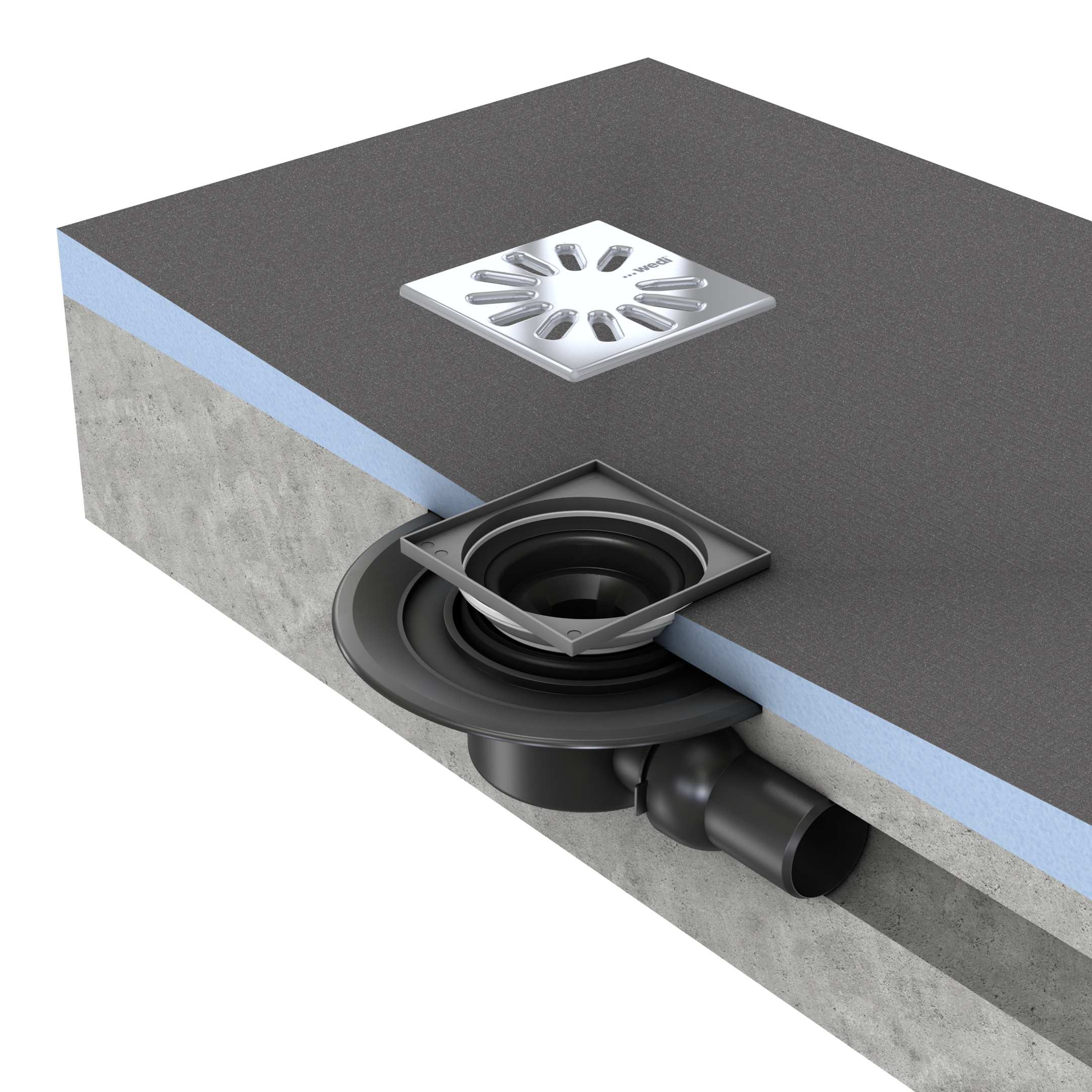

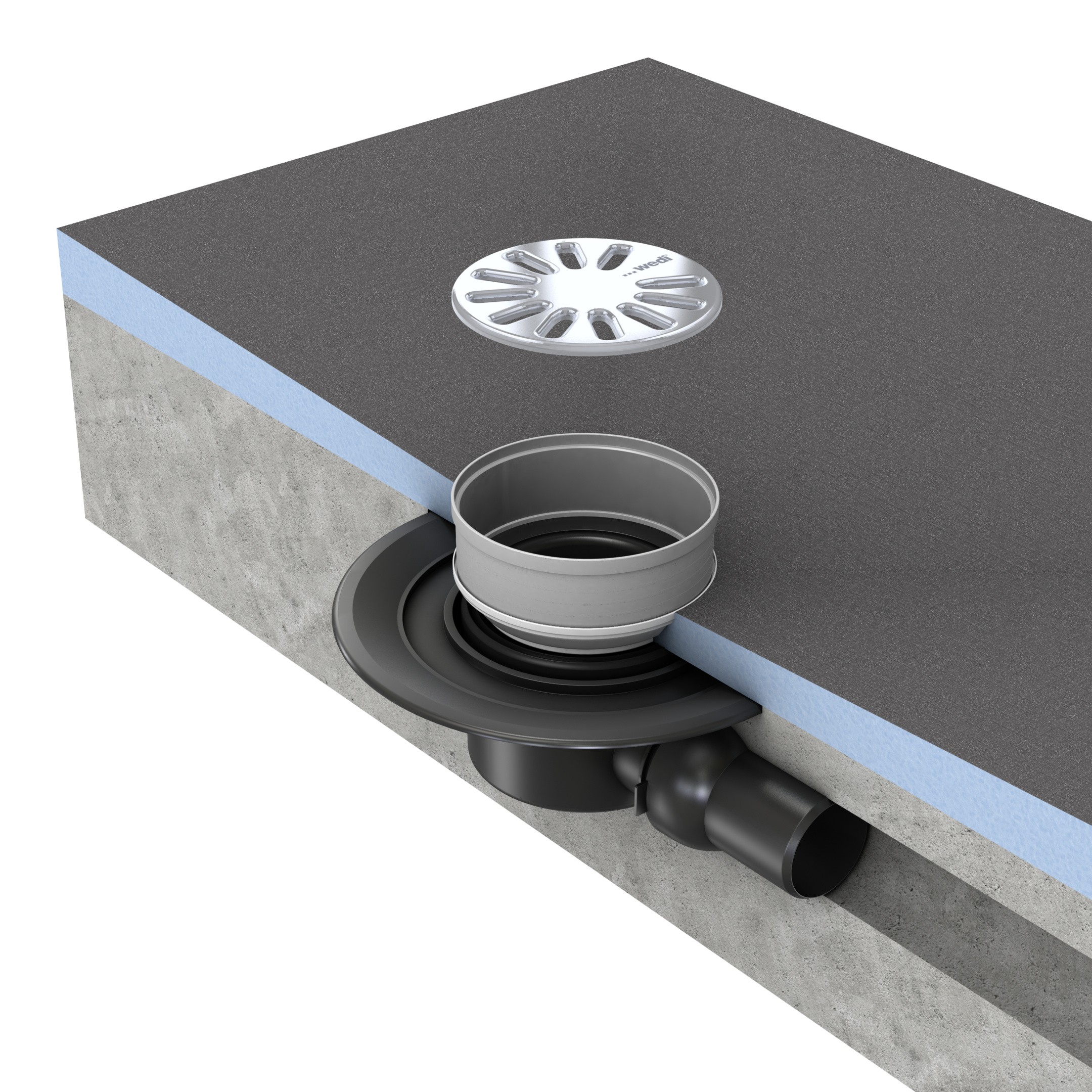

- Fundo drain horizontal, DN 50, with square drain cover

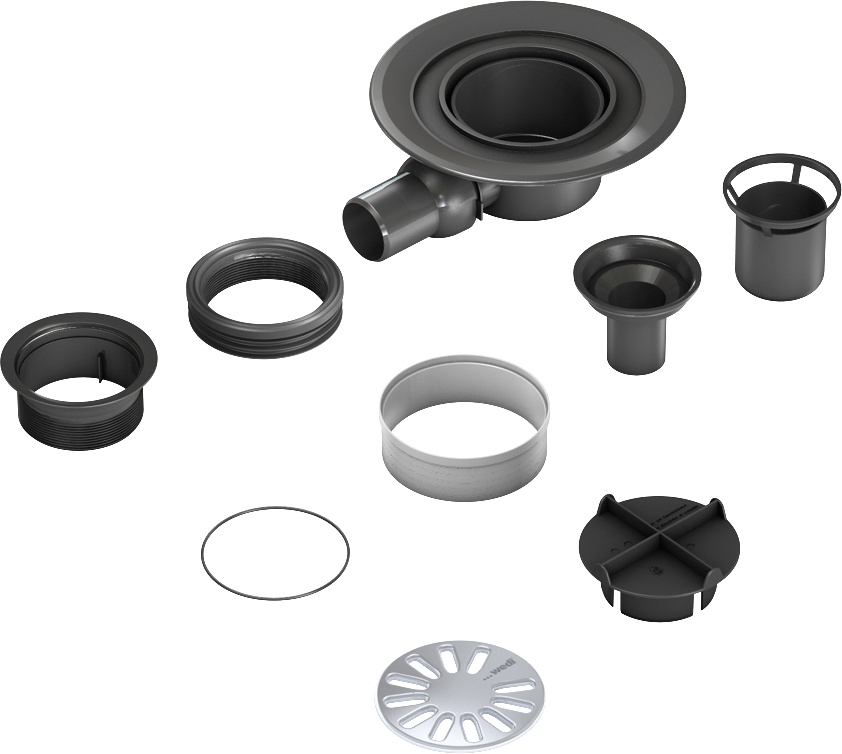

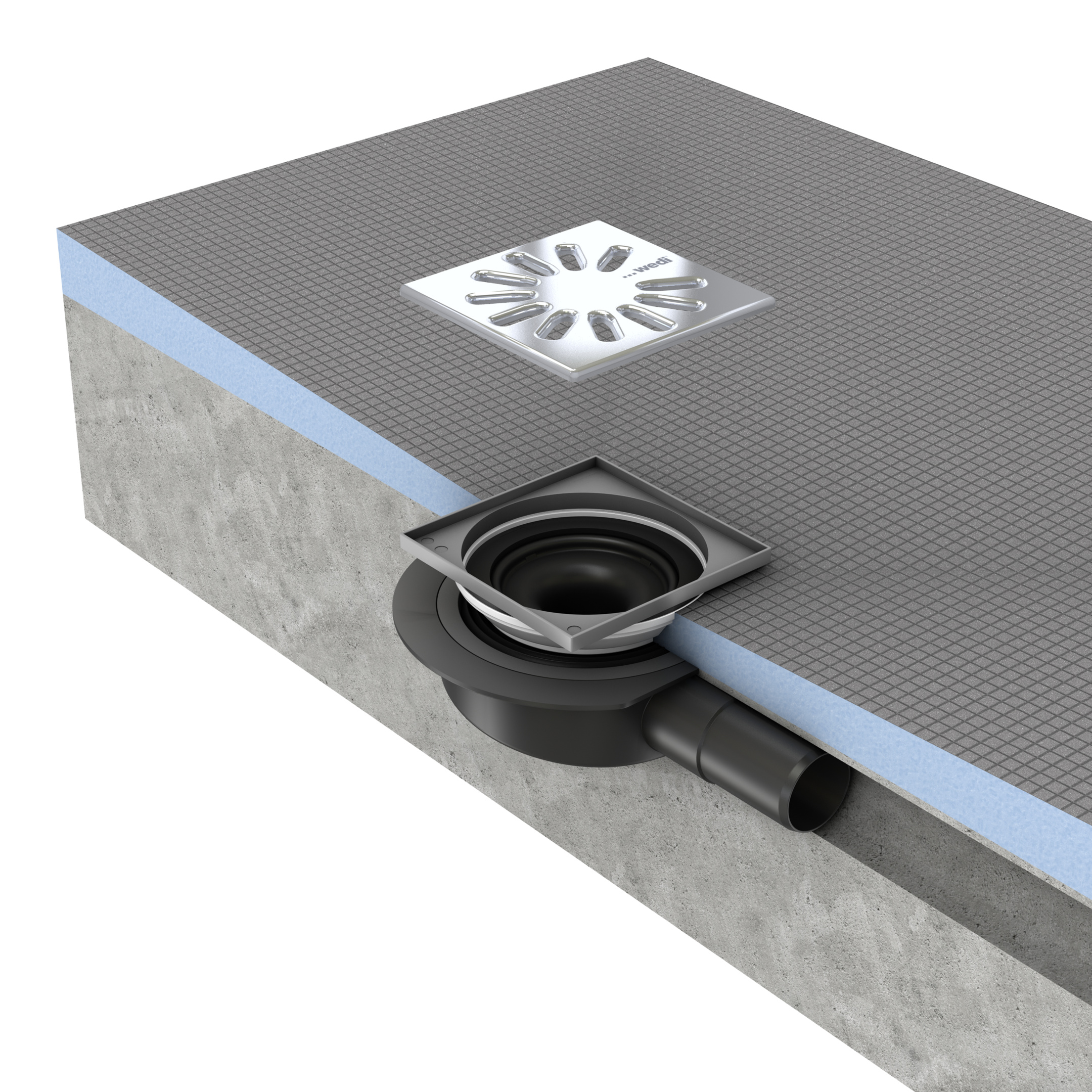

- Fundo drain Mini Max, horizontal, DN 40, with square drain cover - Only the wedi drainage system for Fundo can be used for all Fundo shower elements.
The drains can be combined with the following Fundo series:- Fundo Primo
- Fundo Borgo
- Fundo Trollo
- Fundo Nautilo
- Fundo Ligno
All advantages at a single glance
Product information
wedi offers the compatible and systemised drain technology for the flush-to-floor shower elements. Because of the low installation height and water-tight security design concept, these systems are well suited for use in new builds and renovations. There is a variety of different versions for vertical designs available:
- Design variations:
- Fundo drain horizontal, DN 50, with square drain cover
- Fundo drain Mini Max, horizontal, DN 40, with square drain cover - Only the wedi drainage system for Fundo can be used for all Fundo shower elements.
- Fundo Primo
- Fundo Borgo
- Fundo Trollo
- Fundo Nautilo
- Fundo Ligno
Technical properties – Drain
| Frame with stainless steel grid available in the following dimensions: square, square screwable round |
115 x 115 mm Ø 115 mm |
| Drain performance depending on the drain selected: Fundo drain Mini Max, horizontal, DN 40, |
0,5 l/s; 30,0 l/min |
| Fundo drain, horizontal, DN 50 ABS, acc. DIN EN 1253 |
0,80 l/s; 48,0 l/min |
Applications Fundo drain
- In domestic residential construction
- In publicly accessible buildings and workplaces complying
- In accessible dwellings complying with DIN 18040 part 2 (note specifications for minimum tile size if wheelchair access is planned, see technical properties)
- As a construction seal combined with tile and natural stone (floors subject to moderate surface flowing water in interior areas; directly loaded floors in rooms in which tap or cleaning water is used very frequently or for long periods, and floors of indoor and outdoor pools that are filled with water with the properties of drinking water).
