wedi Fundo drain-substructure elementSuitable substructure element for Fundo drains (point drainage)
Fundo drain-substructure element
„for Fundo point drains.“
Product information

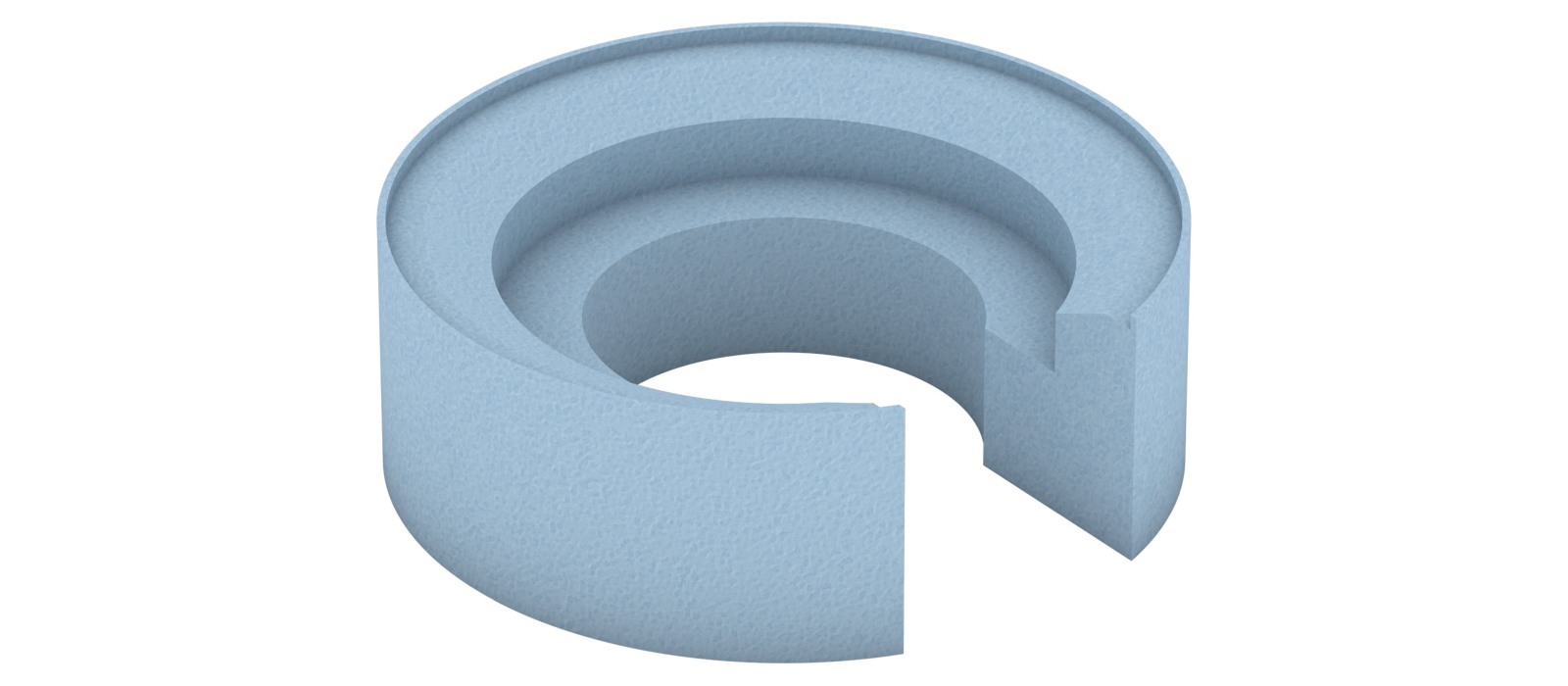

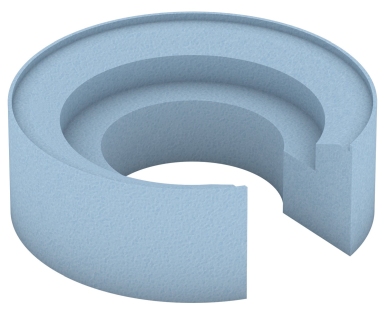

The wedi Fundo drain substructure element, eliminates any possibility of failure resulting from poor positioning of the drain body. It guarantees reliable support and accurate aligning of the drain and therefore time-consuming building and filling with mortar and screed is not required.

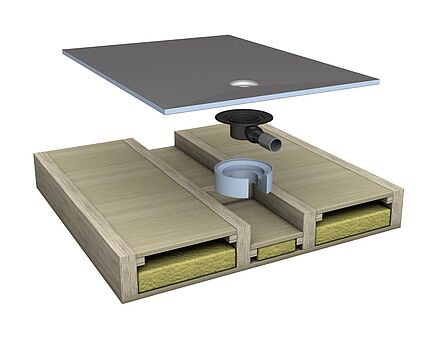

The wedi Fundo drain substructure element is made of XPS foam. It is not reinforced and is not coated. The element is especially recommended for use in suspended timber floors (e.g. when installing Fundo Ligno Plus).
The wedi Fundo drainsubstructure element cannot be combined with the wedi Fundo point drain Mini Max and the wedi Fundo point drain Fire Stop, it can only be used for the vertical and horizontal wedi Fundo point drain DN 50.
Product information
The wedi Fundo drain substructure element, eliminates any possibility of failure resulting from poor positioning of the drain body. It guarantees reliable support and accurate aligning of the drain and therefore time-consuming building and filling with mortar and screed is not required.
The wedi Fundo drain substructure element is made of XPS foam. It is not reinforced and is not coated. The element is especially recommended for use in suspended timber floors (e.g. when installing Fundo Ligno Plus).
The wedi Fundo drainsubstructure element cannot be combined with the wedi Fundo point drain Mini Max and the wedi Fundo point drain Fire Stop, it can only be used for the vertical and horizontal wedi Fundo point drain DN 50.
Technical data of Fundo Drain Substructure Element (Point Drainage
| Material | XPS (extruded polystirene hard foam) |
| Colour | blue |
| Density EN1602 | 32 kg/m³ |
| Temperature Limits | -50 °C / +75 °C |
| Fire behavior EN13501 | E |
Areas of application Fundo Drain Substructure element (Point Drainage)
The wedi Fundo drain substructure element is only approved for use under wedi Fundo shower elements.
The element can be shortened continuously by up to 20 mm.
The wedi Fundo drainsubstructure element cannot be combined with the wedi Fundo point drain Mini Max and the wedi Fundo point drain Fire Stop, it can only be used for the vertical and horizontal wedi Fundo point drain DN 50.
