wedi Tools Sealing tape
Sealing tape to form waterproof joints between wedi building boards and wedi Fundo elements to other non-wedi materials such as screed, plasterboard

Sealing tape, sealing corners, sealing gaiter

„wedi Tools.“

Product information

wedi Tools sealing tape includes a TPE-coated polypropylene fleece. This Sealing tape creates waterproof joints between wedi building boards; and wedi Fundo elements to other non-wedi materials, such as screed and plasterboard, etc.

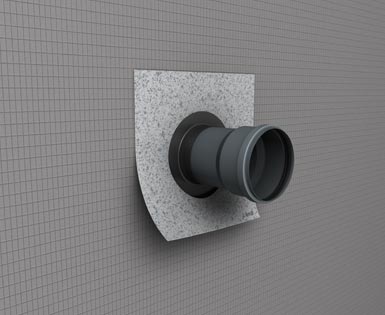

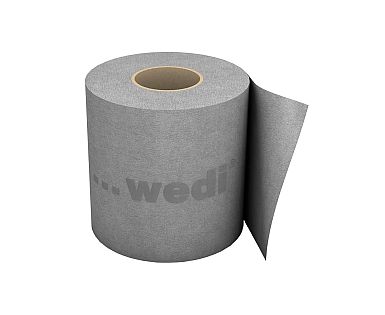

Sealing tape roll, inside corners, outside corners, sealing gaiter

Technical data

Technical properties - Sealing tape

Type	TPE-coated polypropylene fleece
Colour	grey
Overall thickness	approx. 0.70 mm
Maximum longitudinal tensile strength	approx. 104 N / 15 mm
Maximum lateral tensile strength	approx. 23 N / 15 mm
Elongation at break, longitudinal	approx. 70%
Elongation at break, lateral	approx. 335%
Resistance to water pressure (1.5 bar)	> 1.5 bar
Resistant to chemicals	specified in accordance with construction and testing principles
UV resistance	> 500 h
Temperature resistance	-30°C / +90°C

Product sizes

Order no.	Designation	Roll length x width
095100352	wedi Tools sealing tape, fleece laminated	50 m x 100 mm
095110311	wedi Tools sealing tape, fleece laminated	10 m x 120 mm
095110352	wedi Tools sealing tape, fleece laminated	50 m x 120 mm

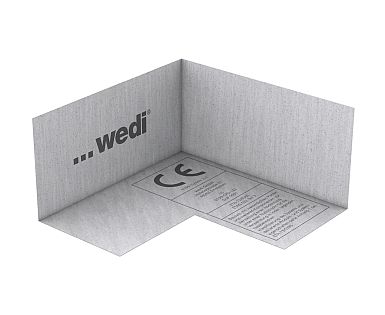

095130001	wedi Tools inside corners, fleece laminated	120 x 120 mm

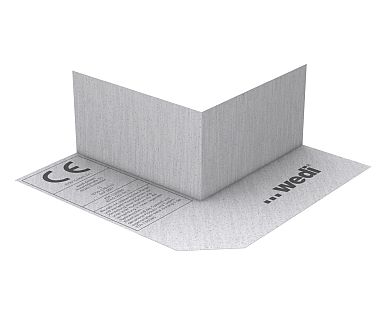

095135001	wedi Tools outside corners, fleece laminated	115 x 115 mm

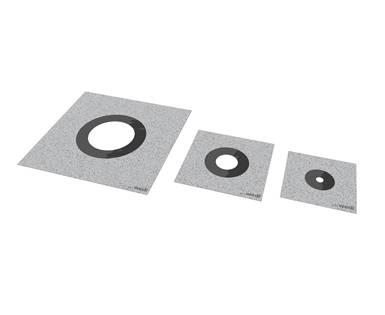

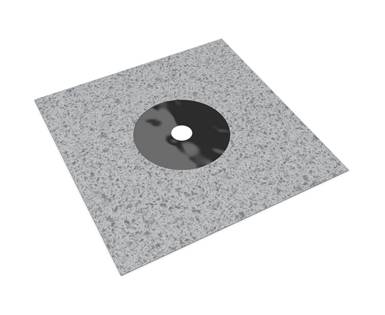

095120051	wedi Tools sealing gaiter, fleece laminated, extendable for sealing suitable for pipe diameters of 4 - 10 mm	120 × 120 × 2 mm
095110373	wedi Tools sealing gaiter, fleece laminated, extendable for sealing suitable for pipe diameters of 10 - 24 mm	130 × 130 × 1 mm
095120050	wedi Tools sealing gaiter, fleece laminated, extendable for sealing suitable for pipe diameters of 25 - 40 mm	150 × 150 × 1 mm
095110374	wedi Tools sealing gaiter, fleece laminated, extendable for sealing suitable for pipe diameters of 35 - 50 mm	150 × 150 × 1 mm
095110375	wedi Tools sealing gaiter, fleece laminated, extendable for sealing suitable for pipe diameters of 50 - 75 mm	200 × 200 × 1 mm
09 5110362	wedi Tools sealing gaiter, fleece laminated, extendable for sealing suitable for pipe diameters of 90 - 125 mm	250 × 250 × 1 mm
095120050	wedi Tools sealing gaiter, fleece laminated, self-adhessive	370 × 370 × 1 mm

Area of application

Areas of use Sealing tape

For secure sealing of corner, connecting and butt joints and intersections.

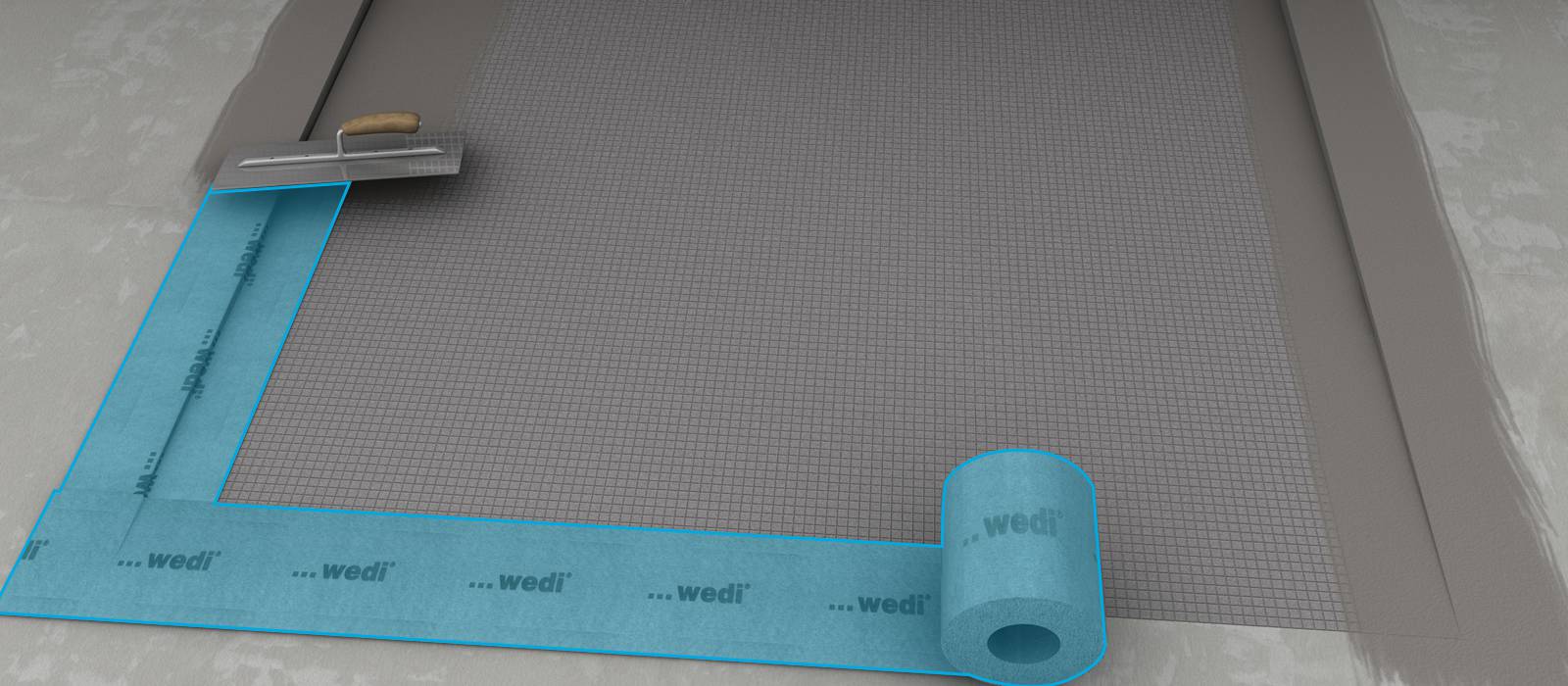

When sealing joints and intersections, wedi Tools sealing tapes must be cemented into the fresh sealant / epoxy resin adhesive and pressed in with a smoothing trowel, depending on the load. When using epoxy resin adhesive, the surface must be cemented over and sprinkled with quartz sand.

The wedi Tools sealing tapes must overlap by at least 5 cm.
