Fundo Ligno PlusSpecially developed for use in old and new builds with wooden floors;
Fundo Ligno Plus
new
„A walk-in shower on timber floors with a seamless design surface’.“
Product information

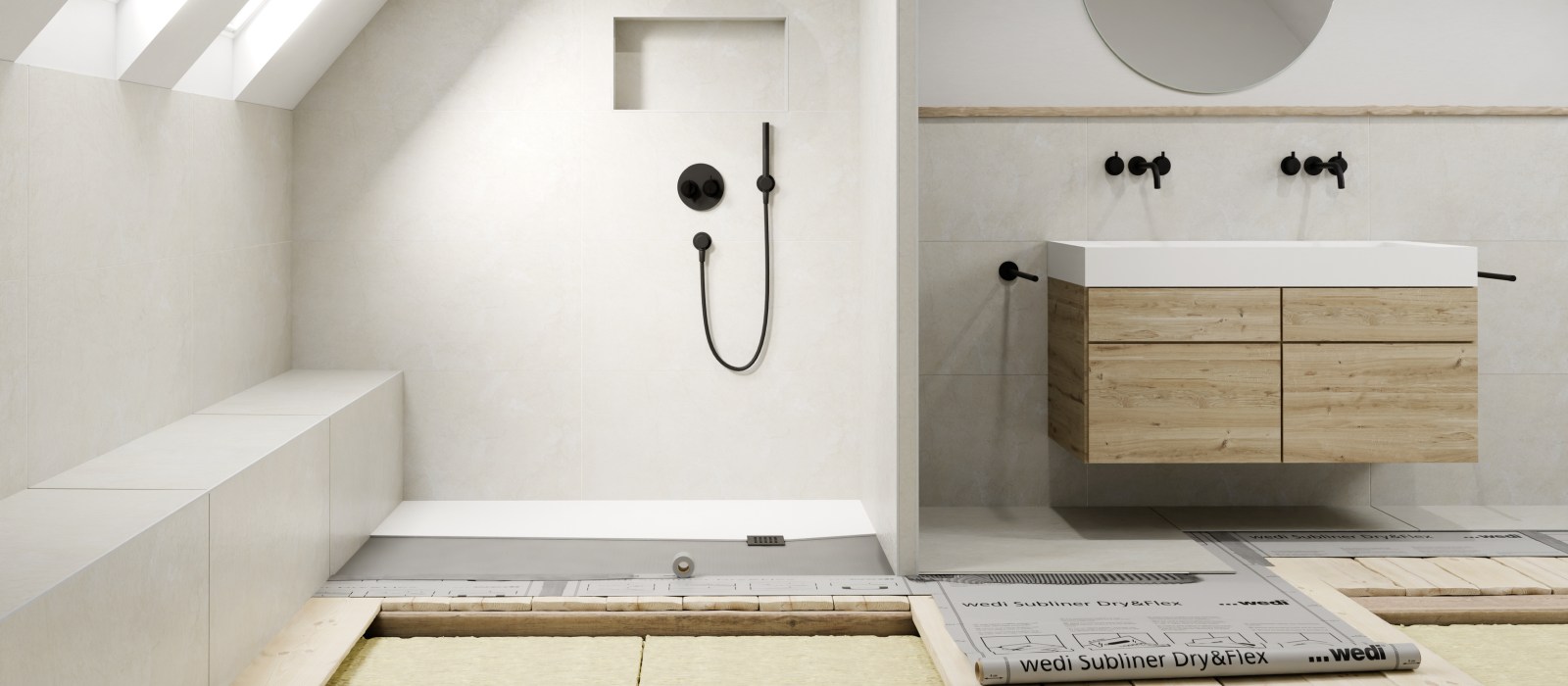

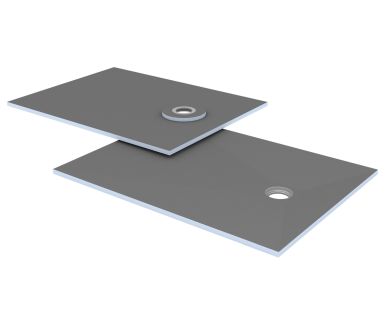

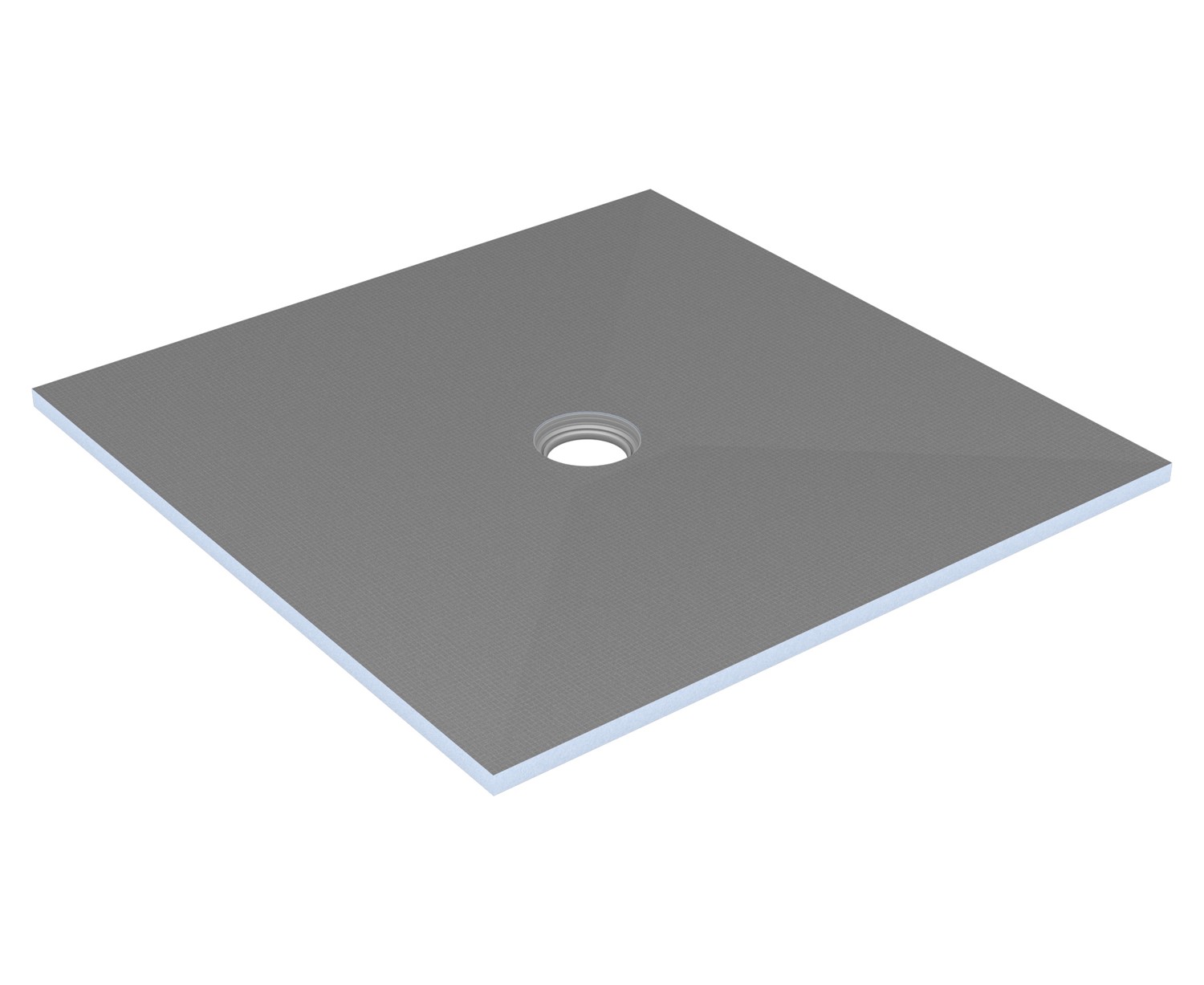

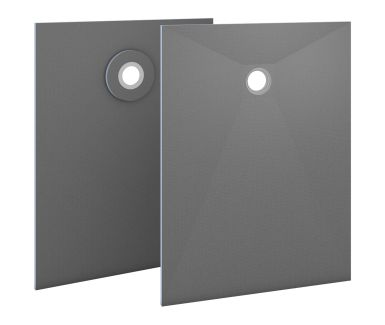

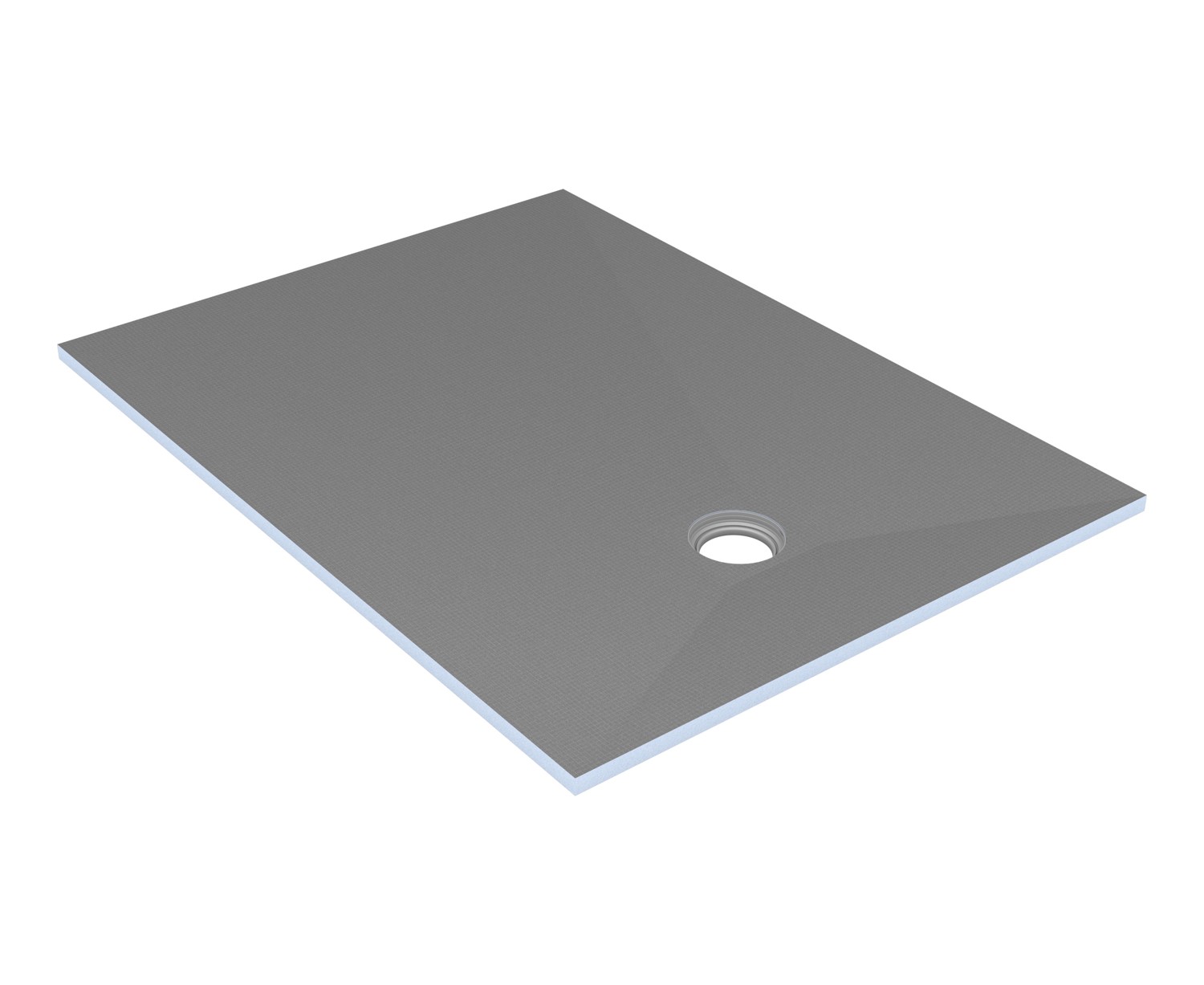

The new Fundo Ligno Plus shower element, with its outer edge thickness of just 23 mm was especially developed for use in timber floor installations in combination with an existing Fundo Top design surface. It sits and fits flush with the existing wooden substrate without the need for laborious levelling measures. Due to the integrated slope, the outer edge thickness falls significantly and so, a support plate is fitted underneath reinforcing the drain area, providing peace of mind about the ever-moving, moisture sensitive wooden floor.
In combination with the seamless, non-slip and antibacterial Fundo Top design surface it provides complete protection against damp, mould and fungi at both substrate and surface level.
- Reinforced drain area
- Predefined 4-sided gradient
- 100% waterproof to the core
- Simple and straightforward installation
Product information
The new Fundo Ligno Plus shower element, with its outer edge thickness of just 23 mm was especially developed for use in timber floor installations in combination with an existing Fundo Top design surface. It sits and fits flush with the existing wooden substrate without the need for laborious levelling measures. Due to the integrated slope, the outer edge thickness falls significantly and so, a support plate is fitted underneath reinforcing the drain area, providing peace of mind about the ever-moving, moisture sensitive wooden floor.
In combination with the seamless, non-slip and antibacterial Fundo Top design surface it provides complete protection against damp, mould and fungi at both substrate and surface level.
- Reinforced drain area
- Predefined 4-sided gradient
- 100% waterproof to the core
- Simple and straightforward installation
Technical properties Fundo Ligno Plus
wedi Fundo shower elements can be cut to size on site, the geometry of the elements should be maintained however. wedi fundo elements can only be combined with the wedi Fundo drains.
| Wheelchair load-bearing from minimum tile size | 50 x 50 mm; |
| Glass mosaic from minimum size | 20 x 20 mm; |
Special |
|
| Frame with stainless steel grid available in th | 120 × 120 mm Ø 120 mm |
| Drain performance depending on the drain select | |
| Fundo drain Mini Max, horizontal, DN 40 | 0,5 l/s ; 30 l/min |
| Fundo drain, horizontal, DN 50 | 0,80 l/s ; 48,0 l/min |
| Fundo drain, vertical, DN 50 | 1,10 l/s ; 66,0 l/min |
| Fundo drain, vertical, DN 70 | 0,80 l/s ; 48 l/min |
| Fundo drain, vertical, DN 50, fire stopp | 1,10 l/s ; 66,0 l/min |
Product sizes
Areas of use Fundo Ligno Plus
- In domestic residential construction
- In publicly accessible buildings and workplaces complying with DIN 18040 part 1
- In accessible dwellings complying with DIN 18040 part 2 (note specifications for minimum tile size if wheelchair access is planned, see technical properties)
