Fundo Plano LineaMakes an optically high-quality transition from the slope of the shower element to the level floor element
Fundo Plano Linea
„The flattest complete linear system of wedi.“
Product information
wedi's innovation of the year is – at the same time – the flattest complete system of wedi for floor-level showers featuring linear drainage. With the drain technology, which was already integrated in the factory, the system measures a mere 70 mm and is a special wedi highlight in bathroom renovations. Positioned very close to the wall, and featuring a short or long channel as an option, the drain gives a high-quality impression from a visual perspective and also frees up additional space for pure shower enjoyment.
The Plano Linea naturally offers all the benefits of a tried-and-tested wedi system, from the guaranteed 100% water tightness to versatile and easy-to-implement use.
wedi Fundo Plano Linea – the highlight of the entire line!
All advantages at a single glance

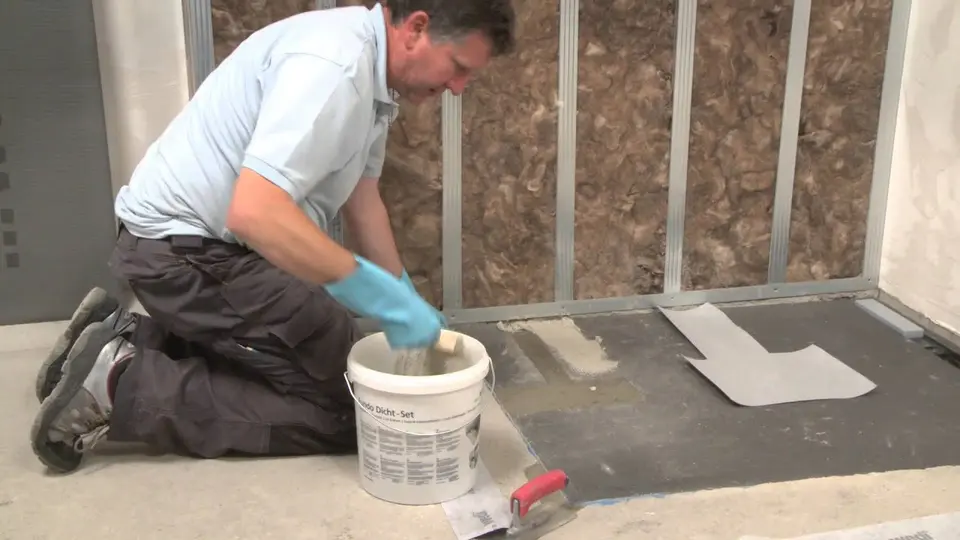

Product video: Fundo Plano Linea
In order to display YouTube videos, it is necessary that you accept marketing cookies.
Please see our privacy policy for more information.
To the cookie settings
Product information
wedi's innovation of the year is – at the same time – the flattest complete system of wedi for floor-level showers featuring linear drainage. With the drain technology, which was already integrated in the factory, the system measures a mere 70 mm and is a special wedi highlight in bathroom renovations. Positioned very close to the wall, and featuring a short or long channel as an option, the drain gives a high-quality impression from a visual perspective and also frees up additional space for pure shower enjoyment.
The Plano Linea naturally offers all the benefits of a tried-and-tested wedi system, from the guaranteed 100% water tightness to versatile and easy-to-implement use.
wedi Fundo Plano Linea – the highlight of the entire line!

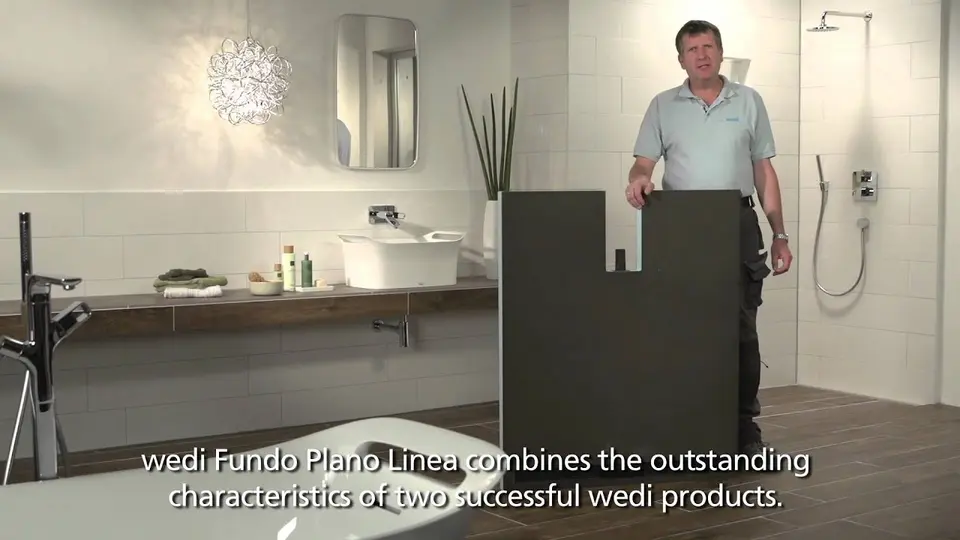

Product video: Fundo Plano Linea
Technical properties Fundo Plano Linea
| Wheelchair load-bearing from minimum tile size | 50 x 50 mm |
| Glass mosaic from minimum size | 20 x 20 mm |
| Total installation height incl. integrated drain technology | 70 mm |
| Surface slope | ≥ 1,19 % |
| Scope of height-adjustability of Stainless steel coverings | 5–25 mm |
| Dimensions of steel coverings (depending on the channel length, L x W) Drain Cover, 300 mm Drain Cover, 700 mm Drain Cover, 800 mm Drain Cover, 900 mm |
288 x 44 mm 688 x 44 mm 788 x 44 mm 888 x 44 mm |
| Drain capacity | 0,40 l/s; 24,0 l/min |
|
|
| Extruded polystyrene rigid foam core | XPS |
| Long-term compressive strength (50 years) ≤ 2% compression EN 1606 |
0,08 N/mm2 |
| Compressive resistance at 10% compression EN 826 | 0,25 N/mm2 |
| Heat conductivity EN 13164 | 0,036 W/mK |
| Bulk density EN 1602 | 32 kg/m3 |
| Temperature limits | -50°C / +75°C |
| Fire behaviour EN 13501 | E |
| Propellant gas, carbon dioxide, GWP value | 1 |
Product sizes
Areas of use Fundo Plano Linea
- In domestic residential construction
- In publicly accessible buildings and workplaces complying with DIN 18040 part 1
- In accessible dwellings complying with DIN 18040 part 2 (note specifications for minimum tile size if wheelchair access is planned, see technical properties)
- As a construction seal combined with tile and natural stone (floors subject to moderate surface flowing water in interior areas; directly loaded floors in rooms in which tap or cleaning water is used very frequently or for long periods, and floors of indoor and outdoor pools that are filled with water with the properties of drinking water)
